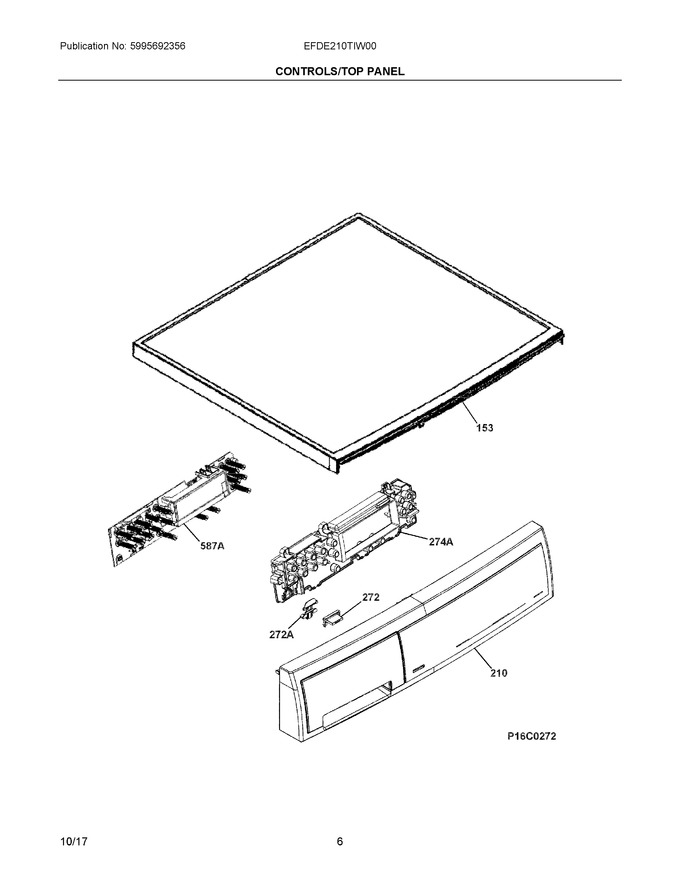

04 - Controls/top Panel
05 - Motor
06 - Burner
07 - Wiring Diagram
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 153 | A03616909 | Panel, Top Assy., 597x501.6mm, White |
|
$ 208.47 | |||||
| 210 | 136815041 | Panel, Control, Handle |
|
$ 318.94 | |||||
| 272 | 136658511 | Button, Rect On/off, Silver |
|
$ 98.81 | |||||
| 272A | 136658601 | Spring, Button, On/off |
|
$ 40.97 | |||||
| 274A | 136659600 | Diffuser, Support, Luminous Diode |
|
$ 112.35 | |||||
| 587A | 136007553 | Control, Ui Board Asmy |
|
$ 308.86 |
