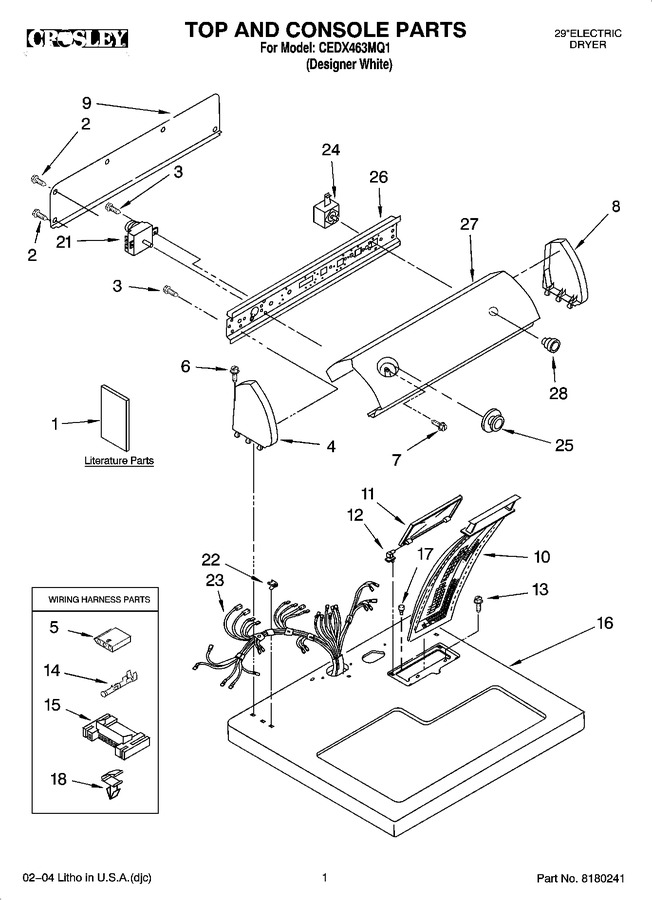

01 - Top And Console Parts
02 - Cabinet Parts
03 - Optional Parts (not Included) Bulkhead Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8528187 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT677818 | Literature Parts (dryer) |
|
- | |||||
| 1 | N/A | Following May Be Purchased Do-it-yourself Repair Manuals |
|
- | |||||
| 1 | LIT8535912 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 1 | LIT8535914 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT8535909 | Literature Parts (sheet, Cycle Feature) |
|
- | |||||
| 2 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 3 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 8.03 | |||||
| 4 | 279960 | Cap, End (l.h.) (Replaces: 8274437) |
|
$ 87.57 | |||||
| 5 | 3936144 | Connector |
|
$ 21.22 | |||||
| 6 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 9.29 | |||||
| 7 | 3400859 | Screw, Grounding |
|
$ 13.88 | |||||
| 8 | 279960 | Cap, End (r.h.) (Replaces: 8274434) |
|
$ 87.57 | |||||
| 9 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 135.31 | |||||
| 10 | 339392V | Screen, Lint (Replaces: 339392) |
|
Immediately | $ 41.91 | ||||
| 11 | 8283378 | Cover, Lint Screen |
|
$ 44.80 | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 3978606) |
|
$ 8.11 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 3978605) |
|
$ 8.11 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 8.05 | |||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 16 | 8271390 | Top |
|
- | |||||
| 17 | 297535 | Bumper, Lint Lid |
|
- | |||||
| 18 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 21 | WP8299781 | Timer, 60 Hz. (Replaces: 8299781) |
|
Immediately | $ 380.55 | ||||
| 22 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.76 | |||||
| 23 | WPW10450292 | Harness, Wiring (Replaces: 8299867) |
|
$ 279.32 | |||||
| 24 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 26.66 | ||||
| 25 | WP3957746 | Timer Knob Assembly (Replaces: 8283182) |
|
$ 57.49 | |||||
| 26 | 8271418 | Bracket, Control |
|
$ 57.15 | |||||
| 27 | 3977936 | Panel, Control |
|
- | |||||
| 28 | WP3957800 | Knob, Push-to-start (Replaces: 3406133) |
|
$ 52.92 |
