SELECT A DIAGRAM

02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Front Parts


10 - Air Flow Parts


11 - Control Parts


12 - Unit Parts


13 - Icemaker Parts


14 - Parts Not Illustrated

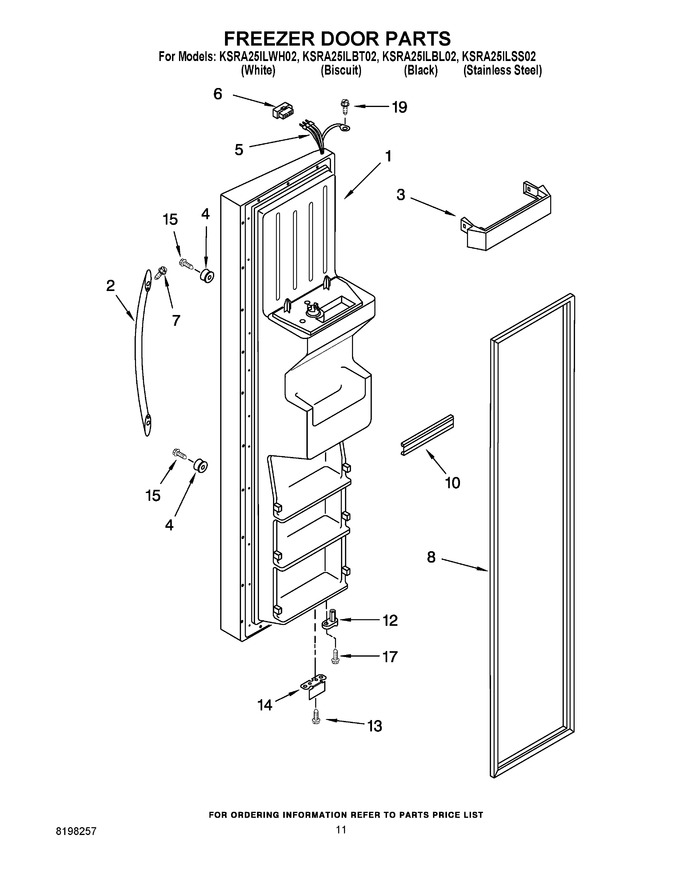

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2206783W		Freezer Door (includes #8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2188635W		Handle (white)		Appelez-nous	-
3	2171070		Shelf Bin (4)		Appelez-nous	-
4	2203690		Stud-handle		Appelez-nous	-
5	2206178		Dispenser Harness				$ 36.28
6	WP2154473		Connector   (Replaces: 2154473)				$ 22.35
7	98654		Set Screw		Appelez-nous	-
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 293.13
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 21.84
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.48
13	WP489483		Screw   (Replaces: 489420)				$ 10.27
14	2200082		Bracket, Door Stop (chrome)				$ 5.83
15	WP488163		Screw   (Replaces: 488208)				$ 7.13
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
19	WP489128		Screw   (Replaces: 488500)				$ 10.26
14A	2200082B		Bracket, Door Stop (black)				$ 42.44
1A	2206783T		Freezer Door (includes #8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1B	2206783B		Freezer Door (includes #8 And Dispenser Front Parts) (black)		Appelez-nous	-
1C	2206783SB		Freezer Door (includes #8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
2A	2188635T		Handle (biscuit)		Appelez-nous	-
2B	2188635B		Handle (black)		Appelez-nous	-
2C	2188635S		Handle (stainless)		Appelez-nous	-
8A	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 299.24

    View Diagram in Separate Window       Print Part List
