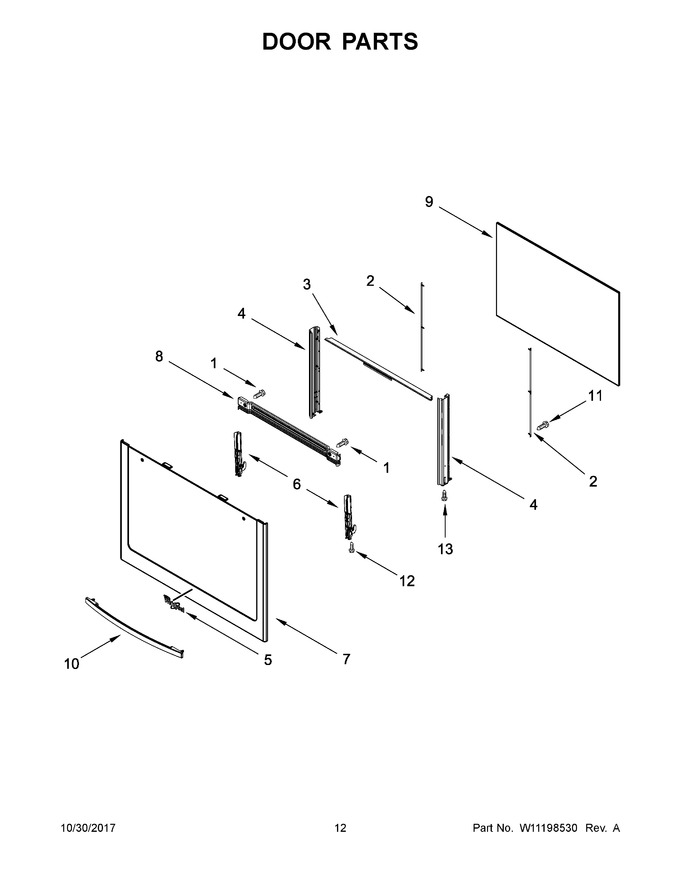

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11428245		Screw (stainless)   (Replaces: 98005521)		Appelez-nous	-
2	W11104748		Seal, Inner Door   (Replaces: W10292266)		Appelez-nous	-
3	W11105139		Upper Trim, Oven Door   (Replaces: W10544145)				$ 152.63
4	W11209792		Trim, Side (left)   (Replaces: W10445015)		Appelez-nous	-
5	W11178521		Nameplate (grey)   (Replaces: W10481433)			Immediately	$ 63.13
6	W11240518		Hinge, Oven Door   (Replaces: W10420753)				$ 152.43
7	W11176456		Glass, Outer Door Assembly (stainless)   (Replaces: W11051158)				$ 479.29
8	W11389703		Cross Support   (Replaces: W10387343)		Appelez-nous	-
9	WPW10535767		Glass, Inner   (Replaces: W10535767)				$ 291.66
10	W10894054		Handle, Oven Door (stainless)   (Replaces: W10831891)		Appelez-nous	-
11	W11206744		Screw   (Replaces: 98008699)				$ 14.23
12	W10837674		Screw   (Replaces: W10146346)				$ 8.05
13	W10837731		Screw   (Replaces: W10493726)				$ 8.30
4A	W11232008		Trim, Side (right)   (Replaces: W10445013)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
