01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts

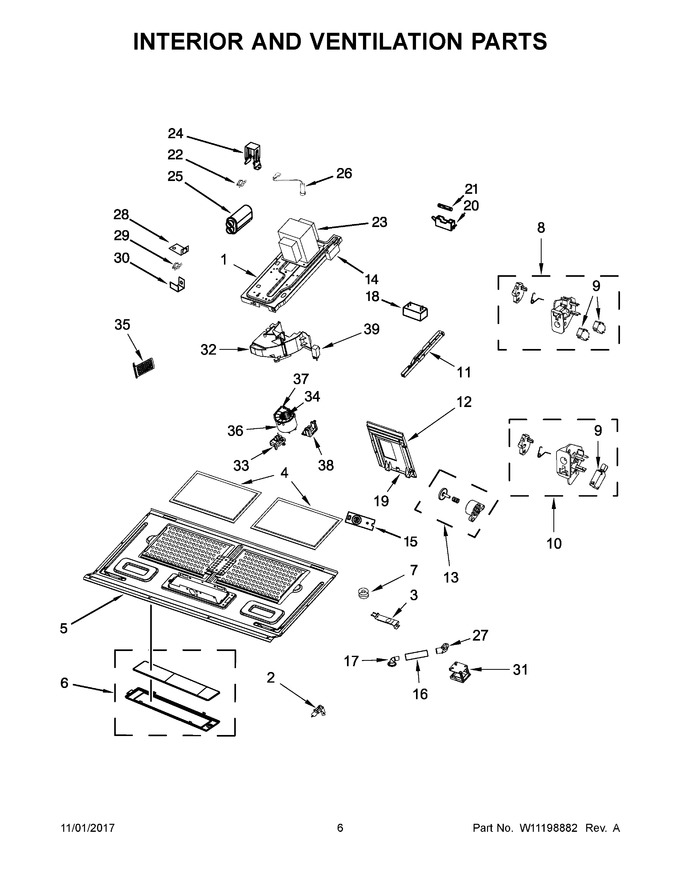

04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10908578 | Chassis |
|
- | |||||
| 2 | W10709921 | Lamp, Halogen |
|
Immediately | $ 21.22 | ||||
| 3 | W10525853 | Bracket, Smart Pop |
|
- | |||||
| 4 | W10535950 | Filter, Grease |
|
Immediately | $ 31.00 | ||||
| 5 | W10571126 | Plate, Bottom |
|
$ 95.78 | |||||
| 6 | W10240330 | Assembly, Lamp Glass And Holder |
|
$ 7.55 | |||||
| 7 | W10510237 | Spacer, Smart Pop |
|
- | |||||
| 8 | W11192678 | Assembly, Upper Interlock (includes Switches) (Replaces: W11169313) |
|
Immediately | $ 34.38 | ||||
| 9 | N/P | Switches, Interlock (not Serviced, Order Interlock Assemblies) |
|
- | |||||
| 10 | W11192679 | Assembly, Lower Interlock (includes Switches) (Replaces: W11169315) |
|
Immediately | $ 24.11 | ||||
| 11 | W10540718 | Bracket, Cavity |
|
$ 32.61 | |||||
| 12 | W10571453 | Insulation, Side |
|
- | |||||
| 13 | W10197758 | Assembly, Piston |
|
Immediately | $ 93.36 | ||||
| 14 | W11405831 | Capacitor, Hood Motor (Replaces: W10245191) |
|
$ 44.36 | |||||
| 15 | W10536989 | Thermistor, Pcba |
|
Immediately | $ 38.68 | ||||
| 16 | W10510235 | Tube, Smart Pop Sound |
|
$ 23.97 | |||||
| 17 | W10510234 | Terminal, Smart Pop |
|
$ 23.51 | |||||
| 18 | W10568805 | Resistor, Cement |
|
$ 29.04 | |||||
| 19 | W10533107 | Deflector, Air |
|
- | |||||
| 20 | W10245194 | Holder, Fuse |
|
$ 87.31 | |||||
| 21 | W11707984 | Fuse (Replaces: W10138793) |
|
Immediately | $ 45.85 | ||||
| 22 | W11553234 | Thermostat, Magnetron (Replaces: W10591803) |
|
$ 43.69 | |||||
| 23 | W10772112 | Transformer, High Voltage |
|
Immediately | $ 318.81 | ||||
| 24 | W10633730 | Bracket, Capacitor |
|
- | |||||
| 25 | W10654462 | Capacitor, High Voltage |
|
Immediately | $ 51.02 | ||||
| 26 | W11256462 | Diode, High Voltage (Replaces: W10575765) |
|
Immediately | $ 34.86 | ||||
| 27 | W10510233 | Terminal, Pcba Smart Pop |
|
$ 23.53 | |||||
| 28 | W10259248 | Cover, Thermostat |
|
- | |||||
| 29 | W10599629 | Thermostat, Convection |
|
$ 35.84 | |||||
| 30 | 8206223 | Clip |
|
$ 54.51 | |||||
| 31 | W11416049 | Pcba, Smart Pop (Replaces: W10508748) |
|
$ 277.26 | |||||
| 32 | W10631701 | Air Guide, Magnetron |
|
$ 123.49 | |||||
| 33 | W11230994 | Motor, Cooling (Replaces: W10536556) |
|
Immediately | $ 201.13 | ||||
| 34 | W10533503 | Wheel, Cooling Fan |
|
$ 34.14 | |||||
| 35 | W10756358 | Door, Valve |
|
- | |||||
| 36 | W10533501 | Housing, Cooling Fan |
|
Immediately | $ 31.75 | ||||
| 37 | W10533502 | Cover, Cooling Fan |
|
$ 26.49 | |||||
| 38 | W10533480 | Holder, Ntc |
|
$ 24.77 | |||||
| 39 | W10458325 | Actuator |
|
$ 97.42 |
