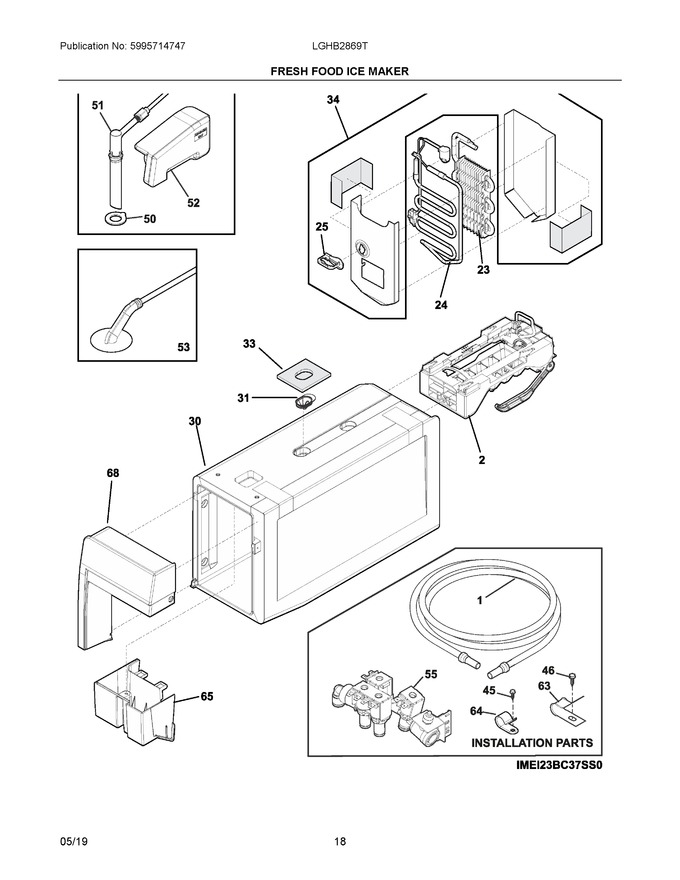

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241964707 | Tube-water, 1/4-36", Light Green, Valve To, Back Connector |
|
Immediately | $ 20.48 | ||||
| 2 | 243297613 | Ice Maker, Complete, 115 V (Replaces: 243297606) |
|
Immediately | $ 130.73 | ||||
| 20 | 5303918784 | Gasket-evap Housing, .250x.250x5.250 (Replaces: 242095404) |
|
Immediately | $ 136.39 | ||||
| 21 | 5304521781 | Thermostat, Defrost Safety (Replaces: 808062701) |
|
Immediately | $ 46.92 | ||||
| 23 | 242094701 | Evaporator, Assembly, Ice Maker |
|
$ 58.28 | |||||
| 24 | 140068083116 | Heater-defrost, W/safety Therm (Replaces: 242094804) |
|
Immediately | $ 106.42 | ||||
| 25 | 5304508037 | Connector, Harness, Evap Cover |
|
$ 16.01 | |||||
| 30 | 242142203 | Cover, Icmkr & Bucket |
|
$ 239.77 | |||||
| 31 | 5303918571 | Tube-water, Ice Mold Fill, Black, Extension (Replaces: 241844403) |
|
$ 182.49 | |||||
| 33 | 5303918784 | Gasket, Housing Funnel, 2.69x 3.05x .25, Top, W/hole (Replaces: 242146001) |
|
Immediately | $ 136.39 | ||||
| 43 | 241641502 | Screw, Hilo Phil Pn, 8-18 X 3/8 |
|
$ 9.45 | |||||
| 45 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 15.75 | |||||
| 46 | 5304453923 | Screw, Hex Hd Wshr, #8-32 X 1/2 |
|
- | |||||
| 50 | 241512813 | Seal, Doughnut |
|
Immediately | $ 7.58 | ||||
| 51 | 242169404 | Tube-water, Ice Mold Fill, 1/4 - 44", Blue, W/extension |
|
- | |||||
| 52 | 5304508046 | Insulation, I/m Fill Tube |
|
Immediately | $ 16.01 | ||||
| 53 | 241920106 | Tube-water, Ice Maker Fill, 5/16-54", Green, Back Connector, To Ff Ice Maker (Replaces: 241920104) |
|
Immediately | $ 67.41 | ||||
| 55 | 242253002 | Valve-water, Quad Solenoid |
|
Immediately | $ 271.94 | ||||
| 63 | 5304453921 | Clamp-cable |
|
- | |||||
| 64 | 240396801 | Clamp, Tube/wiring, 1/2", Nylon, Black/natural |
|
$ 21.26 | |||||
| 65 | 808456301 | Cover, Wiring |
|
$ 83.79 | |||||
| 68 | 242095002 | Cover, -front, Bucket Trim |
|
$ 105.36 | |||||
| 1A | 241965906 | Tube-water, 5/16-67", Natural, Dispenser To, Back Connector |
|
Immediately | $ 26.78 | ||||
| 1B | 242220119 | Tube-water, 97.5", Natural, Filter Base To, Secondary Valve |
|
Immediately | $ 33.86 | ||||
| NI | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NI | 218515401 | Clip, Grille/tube, & Hinge |
|
$ 19.69 | |||||
| NI | 218362501 | Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2) |
|
$ 13.39 | |||||
| NIA | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 18.11 | ||||
| NIA | 241695906 | Screw, 10-16ab X 0.50 |
|
$ 21.26 | |||||
| NIA | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 7.09 | |||||
| NIA | 5304521762 | Harness, Wiring, Air Handler, W/evap Thrmistr (Replaces: 5304508052) |
|
$ 107.47 | |||||
| NIA | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 19.01 | ||||
| NIA | 242039701 | Screw, Shoulder, #10-16 Type Ab, Upper Slides, W/washer |
|
$ 14.96 | |||||
| NIB | 242096001 | Insulation, I/container Frt |
|
$ 21.91 | |||||
| NIB | 240363602 | Screw-shoulder |
|
$ 15.17 | |||||
| NIC | 218976436 | Tube-water, 5/16-42", Yellow, Valve To, Back Connector (Replaces: 218976434) |
|
Immediately | $ 9.45 | ||||
| NID | 241503901 | Connector-water, Straight, 5/16 To 1/4 |
|
$ 56.91 | |||||
| NIE | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 11.81 | |||||
| NIF | 242220204 | Tube-water, 93.5", Natural, Filter Base To, Secondary Valve |
|
Immediately | $ 44.80 |
