01 - Cover Sheet

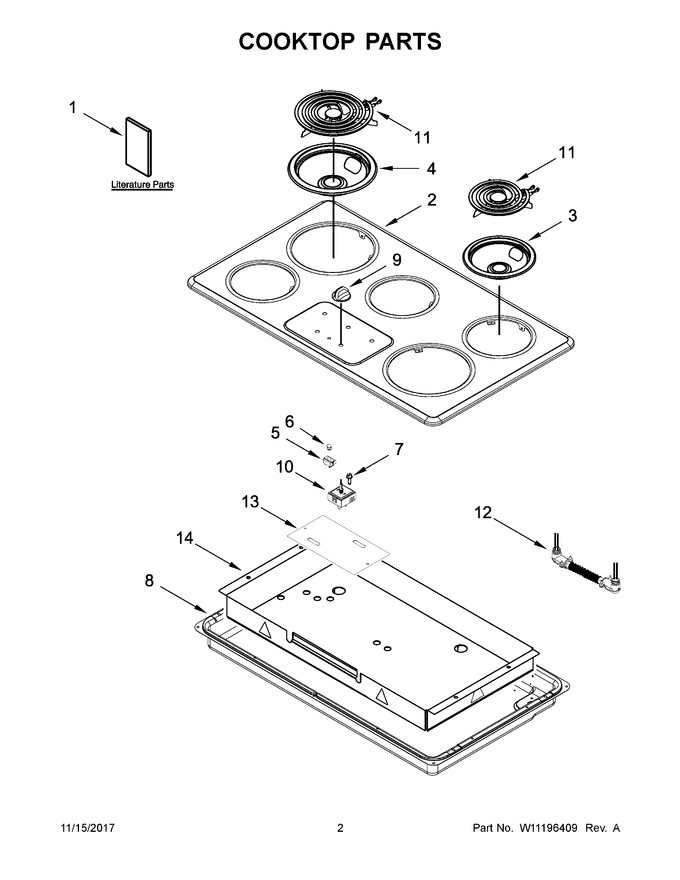

02 - Cooktop Parts


03 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10852771		Guide, Use & Care		Appelez-nous	-
2	W10883323		Cooktop (black)		Appelez-nous	-
3	WPW10196406		Bowl, Drip Small (left Front, Center Rear, Right Rear)   (Replaces: 7725P053-60)			Immediately	$ 13.39
4	WPW10196405		Bowl, Drip Large (left Rear, Right Front)   (Replaces: 7725P054-60)			Immediately	$ 17.29
5	W10852510		Light, Indicator   (Replaces: 7407P102-60)				$ 123.80
6	W11690131		Lens, Indicator Lamp   (Replaces: 7730P012-60)				$ 7.85
7	3400855		Screw   (Replaces: W10734880)		Appelez-nous	-
8	4011F235-80		Box, Burner		Appelez-nous	-
9	W10270282		Knob, Control (black)				$ 21.26
10	W10911303		Switch, Infinite (left Front, Center Rear, Right Rear)   (Replaces: W10578768)			Immediately	$ 115.27
11	W10828623		Element, Surface (6") (left Front, Center Rear, Right Rear)		Appelez-nous	-
12	5700P384-60		Assembly, Conduit Flex		Appelez-nous	-
13	4005F086-51		Cover, Housing		Appelez-nous	-
14	4001F146-51		Unit, Housing		Appelez-nous	-
10A	W11162115		Switch, Infinite (left Rear, Right Front)   (Replaces: W10600015)			Immediately	$ 110.10
11A	W10828624		Element, Surface (8") (left Rear, Right Front)		Appelez-nous	-
1A	W10274252		Instructions, Installation		Appelez-nous	-
1B	W10278689		Diagram, Wiring		Appelez-nous	-
2A	W11198666		Cooktop (white)   (Replaces: W10883327)		Appelez-nous	-
9A	W10270283		Knob, Control (white)		Appelez-nous	-
NI	8008P055-60		Grommet		Appelez-nous	-
NI	5195P141-60		Harness, To Panel		Appelez-nous	-
NI	5175P374-60		Harness, Controls To Top		Appelez-nous	-
NI	5175P373-60		Harness, Coil Top		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	5155P657-60		18 Bk		Appelez-nous	-
NI	WP4159193		Screw, Ground   (Replaces: 7101P027-60)				$ 5.07

    View Diagram in Separate Window       Print Part List
