SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel Parts


03 - Cabinet And Stirrer Parts

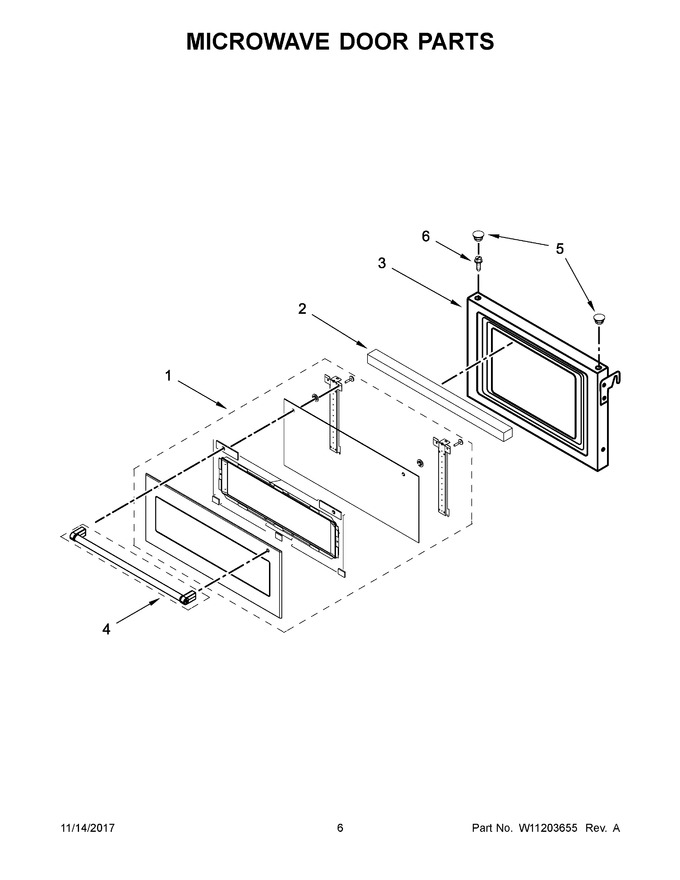

04 - Microwave Door Parts


05 - Internal Microwave Parts


06 - Oven Parts


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10783074		Assembly, Door (black)   (Replaces: W10615380)				$ 481.79
2	W10359769		Foam, Door Handle				$ 14.76
3	W10737653		Assembly, Inner Door				$ 411.83
4	W11525064		Assembly, Handle (stainless)   (Replaces: W10640874)				$ 238.98
5	W11756840		Cap, Screw   (Replaces: 8304588BL)				$ 12.34
6	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
1A	W10783076		Assembly, Door (white)   (Replaces: W10615381)				$ 480.47
1B	W10783078		Assembly, Door (stainless)   (Replaces: W10615379)				$ 400.52
