01 - Cover Sheet


02 - Control Panel Parts


03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10643471		Guide, Use & Care		Appelez-nous	-

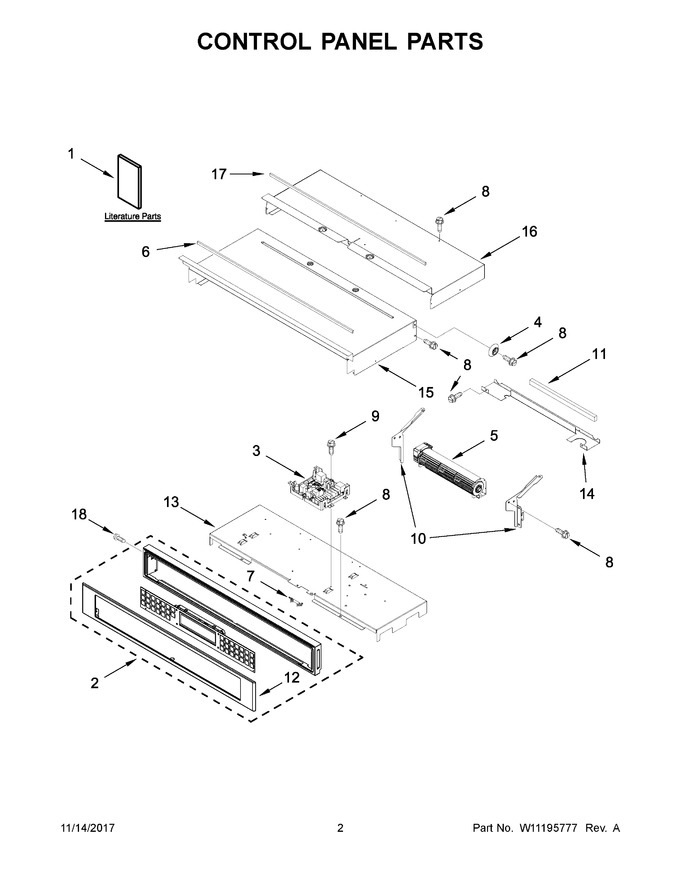

2	W11087454		Assembly, Control Panel (includes Overlay) (black)   (Replaces: W10890585)				$ 734.13
3	W11179310		Control (with Power Supply)   (Replaces: W11040195)			Immediately	$ 456.49
4	W10618105		Spacer, Lateral		Appelez-nous	-
5	W11713858		Blower   (Replaces: W10669823)			Immediately	$ 348.59
6	WPW10657548		Gasket, Rubber   (Replaces: W10657548)				$ 89.66
7	W11204568		Fuse, Thermal   (Replaces: W10782117)			Immediately	$ 131.58
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	W10588744		Skin, Control Panel (black)				$ 258.96
13	W10864102		Tray, Electronic				$ 67.13
14	W10655465		Chassis, Back Divider		Appelez-nous	-
15	W10318192		Chassis, Cover Top Front 30				$ 138.81
16	W10904156		Chassis, Cover Top Back 30   (Replaces: W10694465)		Appelez-nous	-
17	W10728475		Gasket, Rubber				$ 38.13
18	WP3400832		Screw (black)   (Replaces: 3400832)			Immediately	$ 8.18
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
12A	W10588746		Skin, Control Panel (white)		Appelez-nous	-
12B	W10588740		Skin, Control Panel (stainless)				$ 214.05
12C	W10776407		Skin, Control Panel (black Stainless)				$ 285.61
1A	W10725670		Instructions, Installation		Appelez-nous	-
1B	W10351318		Instructions, Undercounter Install		Appelez-nous	-
1C	W11041061		Sheet, Tech		Appelez-nous	-
2A	W10916751		Assembly, Control Panel (includes Overlay) (white)   (Replaces: W10890582)				$ 581.08
2B	W11093241		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W10890584)			Immediately	$ 961.44
2C	W10916750		Assembly, Control Panel (includes Overlay) (black Stainless)   (Replaces: W10890565)				$ 578.56
NI	W10655464		Bracket, Harness				$ 40.71
NI	W11132989		Harness, Door Latch   (Replaces: W10775068)				$ 118.98
NI	W11157218		Harness, Signal   (Replaces: W10603909)				$ 119.69
NI	W11033094		Harness, Main				$ 244.08
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10760039		Bag, Hardware   (Replaces: W10431303)				$ 12.17
NI	4450800		Screw, Grounding				$ 13.47
NI	W10487999		Clip, Harness				$ 21.12
NI	4452400		Strap, Lead Ground				$ 45.42
NI	4448664		Clamp, Conduit				$ 21.41
NI	W11699910		Harness, Eol   (Replaces: W10562910)			Immediately	$ 32.95
