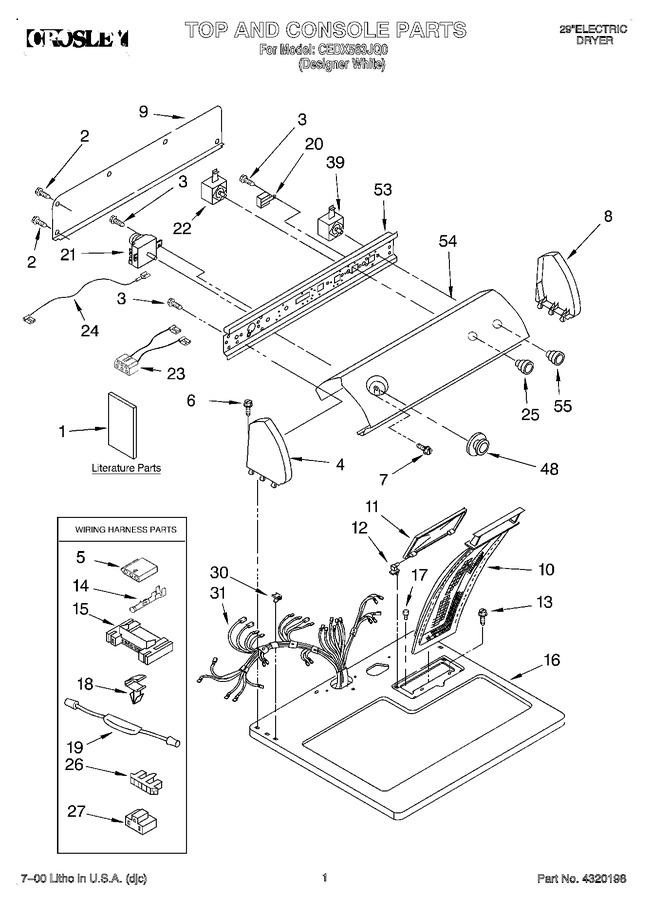

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8318479 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 1 | LIT3406692 | Literature Parts (label, Wiring Diagram) |
|
- | |||||
| 1 | LIT3397618 | Literature Parts (instructions, Installation) |
|
- | |||||
| 2 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 3 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 8.03 | |||||
| 4 | 279960 | Cap, End (l.h.) (Replaces: 8274437) |
|
$ 87.57 | |||||
| 5 | 3936144 | Connector |
|
$ 21.22 | |||||
| 6 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 9.29 | |||||
| 7 | 3400859 | Screw, Grounding |
|
$ 13.88 | |||||
| 8 | 279960 | Cap, End (r.h.) (Replaces: 8274434) |
|
$ 87.57 | |||||
| 9 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 135.31 | |||||
| 10 | 339392V | Screen, Lint (Replaces: 339392) |
|
Immediately | $ 41.91 | ||||
| 11 | 8283378 | Cover, Lint Screen |
|
$ 44.80 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 3978605) |
|
$ 8.11 | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 3978606) |
|
$ 8.11 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 8.05 | |||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 16 | 8271390 | Top |
|
- | |||||
| 17 | 297535 | Bumper, Lint Lid |
|
- | |||||
| 18 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 19 | 279872 | Resistor Assembly (Replaces: 3401075) |
|
$ 78.69 | |||||
| 20 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 21 | WP8299766 | Timer, 60 Hz. (Replaces: 8299766) |
|
$ 389.24 | |||||
| 22 | 3399638 | Switch, Temperature |
|
$ 136.24 | |||||
| 23 | 8283286 | Wire, Jumper (temperature) (Replaces: 3396028) |
|
- | |||||
| 24 | 3401668 | Wire, Jumper (tan) |
|
- | |||||
| 24 | 3401671 | Wire, Jumper (white) |
|
- | |||||
| 25 | WP3957796 | Knob, Control (Replaces: 3950759) |
|
Immediately | $ 57.57 | ||||
| 26 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 27 | 3401144 | Connector (relay/buzzer) |
|
$ 12.81 | |||||
| 30 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.76 | |||||
| 31 | 3394302 | Harness, Wiring |
|
- | |||||
| 39 | WP3398094 | Switch, Push-to-start (Replaces: 3398094) |
|
Immediately | $ 88.09 | ||||
| 48 | WP3957746 | Timer Knob Assembly (Replaces: 8283182) |
|
$ 57.49 | |||||
| 53 | 8271418 | Bracket, Control |
|
$ 57.15 | |||||
| 54 | 3977922 | Panel, Control |
|
- | |||||
| 55 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 55 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 55 | WP3957800 | Knob, Push-to-start (Replaces: 3406133) |
|
$ 52.92 | |||||
| 55 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 55 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- |
