01 - Cover Sheet

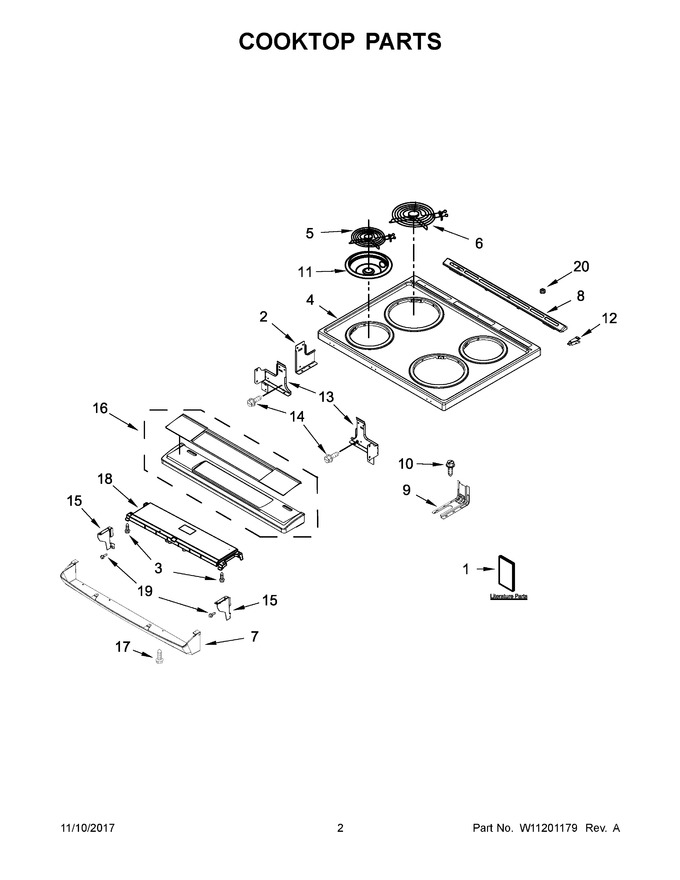

02 - Cooktop Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10842014 | Instructions, Installation |
|
- | |||||
| 2 | W10814305 | Bracket, Console (center) |
|
- | |||||
| 3 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 4 | W10795408 | Cooktop (black) (Replaces: W10536327) |
|
- | |||||
| 5 | WPW10259868 | Element (6") (left Front And Right Rear) (Replaces: W10259868) |
|
Immediately | $ 173.17 | ||||
| 6 | WPW10259865 | Element (8") (right Front And Left Rear) (Replaces: W10259865) |
|
Immediately | $ 144.20 | ||||
| 7 | W10894124 | Panel, Front (black) (Replaces: W10816943) |
|
$ 560.36 | |||||
| 8 | W11240519 | Vent, Trim Top (black) (Replaces: W10636528) |
|
$ 157.19 | |||||
| 9 | W11502257 | Bracket, Anti-tip (Replaces: W10606241) |
|
Immediately | $ 23.03 | ||||
| 10 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 11 | WPW10196405 | Bowl, Drip (8") (Replaces: W10196405) |
|
Immediately | $ 17.29 | ||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 13 | W10814304 | Support, Cooktop (right) |
|
- | |||||
| 14 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 15 | W10547960 | Bracket, Console (left) |
|
$ 23.22 | |||||
| 16 | W10893947 | Console (stainless) (Replaces: W10825357) |
|
Immediately | $ 609.04 | ||||
| 17 | W10516115 | Screw |
|
$ 14.52 | |||||
| 18 | W10894095 | Electronic, Control (lcx) (Replaces: W10806886) |
|
$ 527.64 | |||||
| 19 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 20 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 14.91 | ||||
| 11A | WPW10196406 | Bowl, Drip (6") (Replaces: W10196406) |
|
Immediately | $ 13.39 | ||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 78.59 | |||||
| 13A | W10814303 | Support, Cooktop (left) |
|
- | |||||
| 15A | W10547961 | Bracket, Console (right) |
|
$ 23.22 | |||||
| 1A | W10887092 | Use And Care Guide |
|
- | |||||
| 1B | W10842035 | Tech Sheet |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1E | W10850075 | Wiring Diagram |
|
- | |||||
| NI | W10664316 | Clip, Harness |
|
$ 20.97 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10841090 | Clamp, Wire (Replaces: 7111P017-60) |
|
- | |||||
| NI | W11190435 | Harness, Cooktop (Replaces: W10800450) |
|
$ 220.95 | |||||
| NI | W11226231 | Harness, Console (Replaces: W10860058) |
|
- | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | W10876233 | Harness, Main |
|
$ 151.64 |
