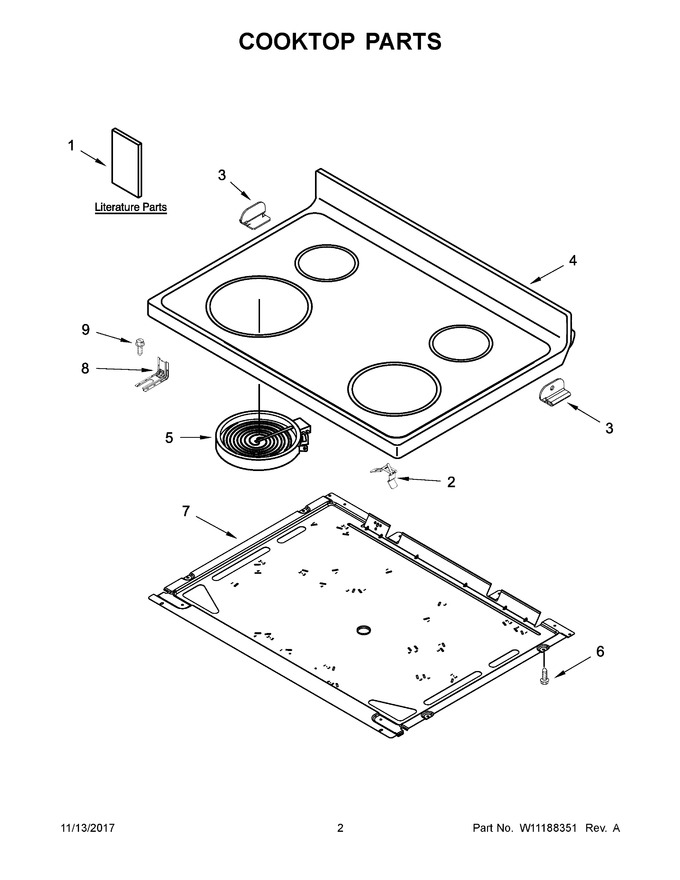

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10877842		Instructions, Installation		Appelez-nous	-
2	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.91
3	W10607641		Bracket, Cooktop (left)				$ 33.52
4	W11178058		Cooktop (white)   (Replaces: W11034828)				$ 863.40
5	W11517959		Element (3000/1400w) (left Front)   (Replaces: W10275048)			Immediately	$ 146.68
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
7	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 143.49
8	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.54
9	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
1A	W10866296		Guide, Use & Care		Appelez-nous	-
1B	W10873898		Sheet, Tech		Appelez-nous	-
1C	W10873905		Diagram, Wiring		Appelez-nous	-
1D	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1E	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
3A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
4A	W10245805		Cooktop (black)   (Replaces: W10380657)			Immediately	$ 553.83
5A	W11171119		Element (1200w) (left Rear, Right Rear)   (Replaces: 8273994)			Immediately	$ 236.89
5B	W11047722		Element (2500w) (right Front)   (Replaces: 8273992)			Immediately	$ 132.46
NI	W10842605		Harness, Cooktop (left)				$ 205.50
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11028539		Harness, Wire (main)				$ 248.14
NI	W11825098		Harness, Hidden Bake   (Replaces: W10465644)				$ 86.33
NI	W10842604		Harness, Cooktop (right)				$ 205.24
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00

    View Diagram in Separate Window       Print Part List
