New Model Search:

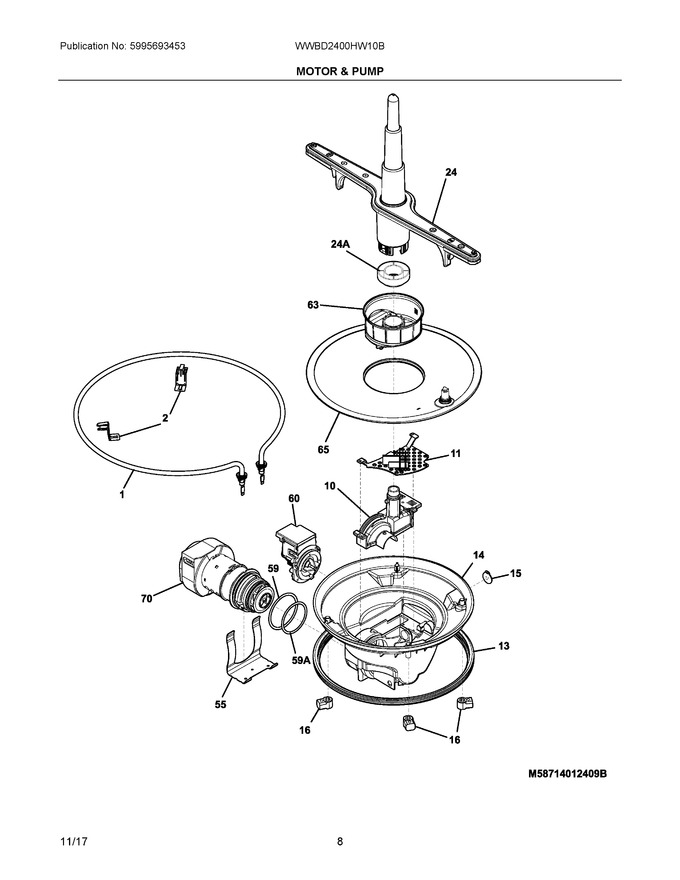

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154825001 | Heater, Round |
|
Immediately | $ 101.32 | ||||
| 2 | 154465101 | Bracket, Heater, (2) |
|
Immediately | $ 12.60 | ||||
| 10 | 807114001 | Cover, Volute |
|
$ 19.04 | |||||
| 11 | 807111601 | Plate, Pump Inlet |
|
Immediately | $ 19.69 | ||||
| 13 | 154246801 | Gasket, Sump |
|
$ 57.97 | |||||
| 14 | 807185501 | Housing, Sump |
|
$ 75.60 | |||||
| 15 | 807048001 | Flapper, Valve |
|
Immediately | $ 9.89 | ||||
| 16 | 154246502 | Retainer, Sump |
|
Immediately | $ 44.89 | ||||
| 24 | 5304518927 | Spray Arm, Lower, W/heat Shield (Replaces: 5304507175) |
|
Immediately | $ 52.22 | ||||
| 29 | 154227811 | Thermostat, Hi Temp Wash |
|
$ 28.92 | |||||
| 30 | 154241101 | Retainer, Thermostat |
|
$ 4.02 | |||||
| 55 | 5304534830 | Bracket, Motor (Replaces: 154595901) |
|
$ 6.16 | |||||
| 59 | 154246901 | O-ring, Rear |
|
Immediately | $ 63.00 | ||||
| 60 | A00126401 | Drain Pump Assy (Replaces: 5304492415) |
|
Immediately | $ 158.89 | ||||
| 63 | 5304506533 | Base, Soil Director |
|
Immediately | $ 20.75 | ||||
| 65 | 140281806020 | Filter, Polypro (Replaces: 5304506525) |
|
Immediately | $ 9.83 | ||||
| 70 | 807473201 | Motor & Pump Assy, W/o-rings |
|
$ 288.17 | |||||
| 24A | 154335201 | Nut, Spray Arm |
|
Immediately | $ 49.00 | ||||
| 59A | 154247001 | O-ring, Front |
|
Immediately | $ 63.00 | ||||
| NI | 154380601 | Clamp, Hose, 1.5" Open, Worm Gear, (5) |
|
$ 81.90 | |||||
| NI | 154779601 | Screw, Ph, 8-10, (2) |
|
$ 1.58 | |||||
| NI | 154783101 | Screw, Plt, 8-10 |
|
$ 7.88 | |||||
| NIA | 154741501 | Screw, Drain Motor Mtg, (3) |
|
$ 14.96 | |||||
| NIA | 154754901 | Screw, Sump Mtg, 8-16, (4) |
|
Immediately | $ 4.73 | ||||
| NIA | 154106202 | Nut, Heater, (2) |
|
Immediately | $ 20.35 | ||||
| NIA | 154297701 | Screw, Retainer-thermo |
|
$ 14.96 | |||||
| NIB | 154289801 | Shield, Heater Terminal |
|
$ 7.33 |
