SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet

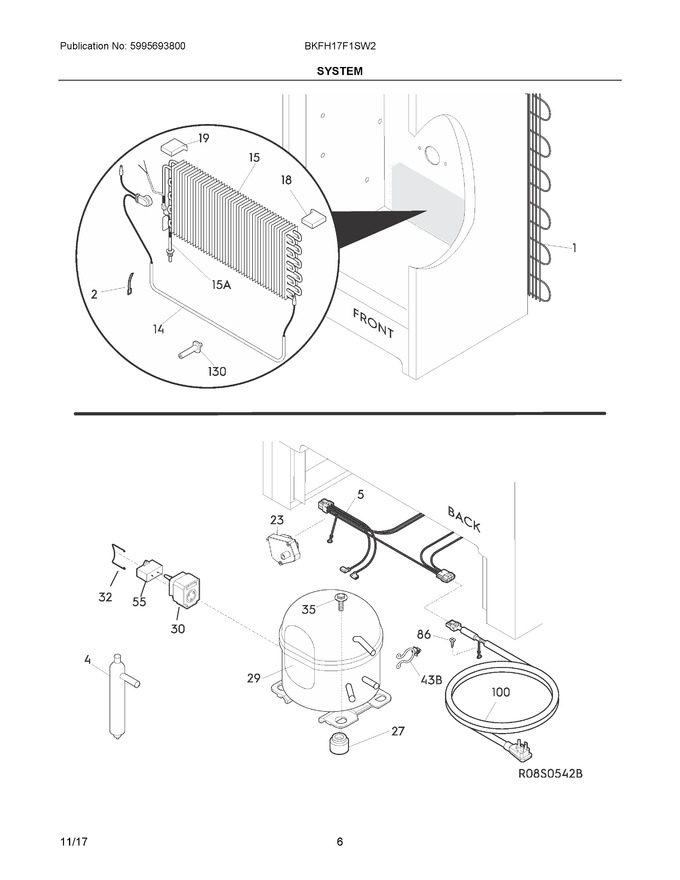

04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 598.19
2	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 71.65
4	5303305677		Filter-dryer   (Replaces: 297396820)			Immediately	$ 35.19
5	297170200		Harness-main				$ 86.81
14	5304496284		Heater, Defrost, W/thermostat			Immediately	$ 122.55
15	297414901		Evaporator   (Replaces: 297414900)			Immediately	$ 190.38
18	297078701		Insulator-evap, Styrofoam, Rh				$ 4.02
19	297078801		Insulator-evap, Styrofoam, Lh				$ 4.02
23	5304518034		Timer, Defrost, 115v, Tab   (Replaces: 297318010)			Immediately	$ 72.16
27	216498900		Grommet, Compressor   (Replaces: 297293302)				$ 14.46
29	240550948		Compressor, Djk57c   (Replaces: 297438455)			Immediately	$ 325.00
30	297259515		Controller, Compressor   (Replaces: 297259502)			Immediately	$ 82.69
32	216954300		Clip, Controller				$ 18.90
35	297368500		Bolt, Compressor		Appelez-nous	-
55	297286812		Capacitor-run, 250 Va, 12 Mf   (Replaces: 297286802)			Immediately	$ 13.09
86	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 15.17
100	297366805		Cord, Power   (Replaces: 297366804)				$ 76.31
130	297244700		Support, Evaporator Mtg				$ 4.73
15A	297217900		Heat Exchanger, Suct/cap Tube			Immediately	$ 102.02
43B	297315800		Clip, Wire				$ 11.25
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.37
NI	240555002		Screw-#8-32 X 3/8			Immediately	$ 14.96
NI	5304485759		Tape, Foil   (Replaces: 216737600)				$ 0.79
NI	125963-48		Insulation, 24", Suction Line   (Replaces: 297001704)			Immediately	$ 65.73
NI	297102800		Spacer-tube		Appelez-nous	-
NI	297014500		Plug-suction Line		Appelez-nous	-
NI	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 12.05

    View Diagram in Separate Window       Print Part List
