SELECT A DIAGRAM
01 - Cover Sheet

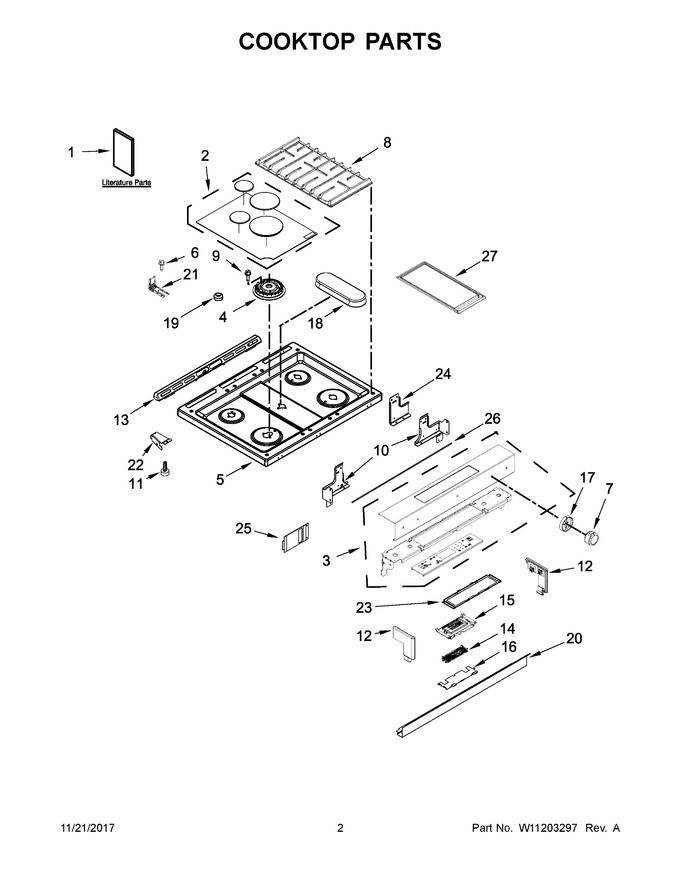

02 - Cooktop Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11124007 | Instructions, Installation |
|
- | |||||
| 2 | W11244067 | Kit, Burner Cap (black) (Replaces: W10432498) |
|
Immediately | $ 212.58 | ||||
| 3 | W10913685 | Console (stainless) (Replaces: W10901118) |
|
$ 811.94 | |||||
| 4 | WPW10256028 | Spreader, Flame (right Front) (Replaces: W10256028) |
|
Immediately | $ 137.69 | ||||
| 5 | W11628045 | Cooktop (stainless) (Replaces: W10536174) |
|
- | |||||
| 6 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 7 | W10872668 | Knob (stainless (all Except Left Front)) (Replaces: W10786065) |
|
Immediately | $ 106.21 | ||||
| 8 | W11228127 | Kit, Grate (black) (Replaces: W10432535) |
|
$ 364.92 | |||||
| 9 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 10 | W10289170 | Support, Cooktop (left) |
|
$ 30.05 | |||||
| 11 | W11189172 | Glide, Main Top (Replaces: 8016P022-60) |
|
Immediately | $ 17.61 | ||||
| 12 | W10555937 | Endcap (stainless (left)) |
|
$ 67.95 | |||||
| 13 | W10577782 | Trim, Vent (stainless) |
|
$ 143.57 | |||||
| 14 | W11100100 | Control, Mrc2 (Replaces: W10759287) |
|
Immediately | $ 367.34 | ||||
| 15 | W11128223 | Assembly, Display (Replaces: W10759323) |
|
Immediately | $ 501.38 | ||||
| 16 | W10558372 | Bracket, Control |
|
$ 25.10 | |||||
| 17 | W10814133 | Bezel (stainless (kit Of 5)) (Replaces: W10785119) |
|
Immediately | $ 113.38 | ||||
| 18 | W11162114 | Flame, Spreader Fish (center) (Replaces: W11030664) |
|
$ 89.90 | |||||
| 19 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 21.97 | ||||
| 20 | W10555934 | Console, Lower Panel (stainless) |
|
Immediately | $ 186.07 | ||||
| 21 | W11502257 | Bracket, Anti-tip (Replaces: W10606241) |
|
Immediately | $ 23.03 | ||||
| 22 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 23 | W10555923 | Bracket, User Interface |
|
$ 107.43 | |||||
| 24 | W10598048 | Bracket, Console (center) |
|
$ 25.73 | |||||
| 25 | W10757531 | Keypad, Shield |
|
$ 80.23 | |||||
| 26 | W10802441 | Gasket, Console/ Cooktop (Replaces: W10612719) |
|
Immediately | $ 22.73 | ||||
| 27 | W10432544 | Griddle |
|
Immediately | $ 56.67 | ||||
| 10A | W10289169 | Support, Cooktop (right) |
|
$ 30.05 | |||||
| 12A | W10555940 | Endcap (stainless (right)) |
|
$ 67.95 | |||||
| 1A | W11196010 | Guide, Use & Care |
|
- | |||||
| 1B | W10844271 | Sheet, Tech |
|
- | |||||
| 1C | W10903847 | Diagram, Wiring |
|
- | |||||
| 1D | W10400066 | Guide, Quick Start (english) |
|
- | |||||
| 1E | W10400067 | Guide, Quick Start (french) |
|
- | |||||
| 22A | W10162252 | Brace, Corner (right) |
|
$ 78.59 | |||||
| 4A | WPW10256025 | Spreader, Flame (right Rear) (Replaces: W10256025) |
|
Immediately | $ 91.07 | ||||
| 4B | W10836467 | Spreader, Flame (left Rear) (Replaces: W10464795) |
|
$ 47.63 | |||||
| 4C | W11106799 | Spreader, Flame (left Front) (Replaces: W10495853) |
|
Immediately | $ 89.01 | ||||
| 7A | W10872674 | Knob (stainless (left Front)) (Replaces: W10786064) |
|
Immediately | $ 59.56 | ||||
| NI | W11198972 | Harness, Bake/broil (Replaces: W10754419) |
|
$ 35.84 | |||||
| NI | W10911847 | Harness, Main (Replaces: W10580232) |
|
Immediately | $ 242.31 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11176109 | Harness, Display (Replaces: W10598169) |
|
Immediately | $ 224.96 | ||||
| NI | W10580265 | Harness, Bake/warm Drawer |
|
Immediately | $ 88.03 | ||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 53.35 | ||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | |||||
| NI | W10580229 | Wire, Ground |
|
$ 38.22 | |||||
| NI | W11688421 | Insulation, Vent Trim (Replaces: W10701082) |
|
- |
