01 - Cover Sheet

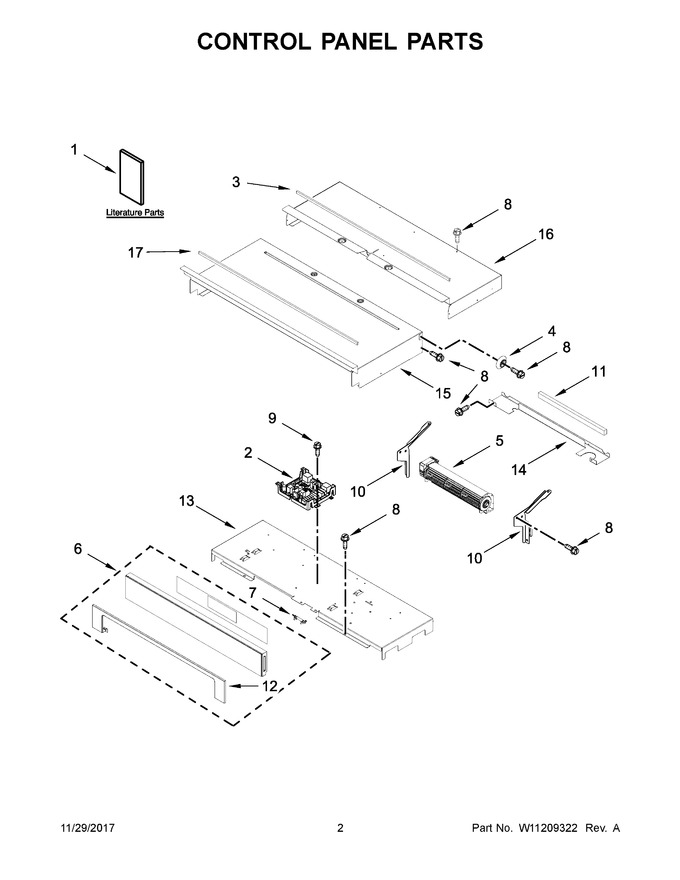

02 - Control Panel Parts
03 - Oven Parts
04 - Oven Door Parts
05 - Internal Oven Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10777368 | Instructions, Installation |
|
- | |||||
| 2 | W11179310 | Control (with Power Supply) (Replaces: W11040195) |
|
Immediately | $ 456.49 | ||||
| 3 | W10728475 | Gasket, Rubber |
|
$ 38.13 | |||||
| 4 | W10618105 | Spacer, Lateral |
|
- | |||||
| 5 | W11713858 | Blower (Replaces: W10669823) |
|
Immediately | $ 348.59 | ||||
| 6 | W10756513 | Assembly, Control Panel (includes Overlay) (stainless) |
|
$ 807.73 | |||||
| 7 | W11204568 | Fuse, Thermal (Replaces: W10782117) |
|
Immediately | $ 131.58 | ||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 12 | W10601418 | Skin, Control Panel (stainless) |
|
- | |||||
| 13 | W10864102 | Tray, Electronic |
|
$ 67.13 | |||||
| 14 | W10655465 | Chassis, Back Divider |
|
- | |||||
| 15 | W10318192 | Chassis, Cover Top Front 30 |
|
$ 138.81 | |||||
| 16 | W10904156 | Chassis, Cover Top Back 30 (Replaces: W10694465) |
|
- | |||||
| 17 | WPW10657548 | Gasket, Rubber (Replaces: W10657548) |
|
$ 89.66 | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W10777365 | Guide, Use & Care |
|
- | |||||
| 1B | W10351318 | Instructions, Undercounter Install |
|
- | |||||
| 1C | W11041073 | Sheet, Tech |
|
- | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 21.41 | |||||
| NI | W11132989 | Harness, Door Latch (Replaces: W10775068) |
|
$ 118.98 | |||||
| NI | W11157218 | Harness, Signal (Replaces: W10603909) |
|
$ 119.69 | |||||
| NI | W11033094 | Harness, Main |
|
$ 244.08 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10655464 | Bracket, Harness |
|
$ 40.71 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 | |||||
| NI | W10487999 | Clip, Harness |
|
$ 21.12 | |||||
| NI | 4452400 | Strap, Lead Ground |
|
$ 45.42 | |||||
| NI | W11699910 | Harness, Eol (Replaces: W10562910) |
|
$ 32.95 |
