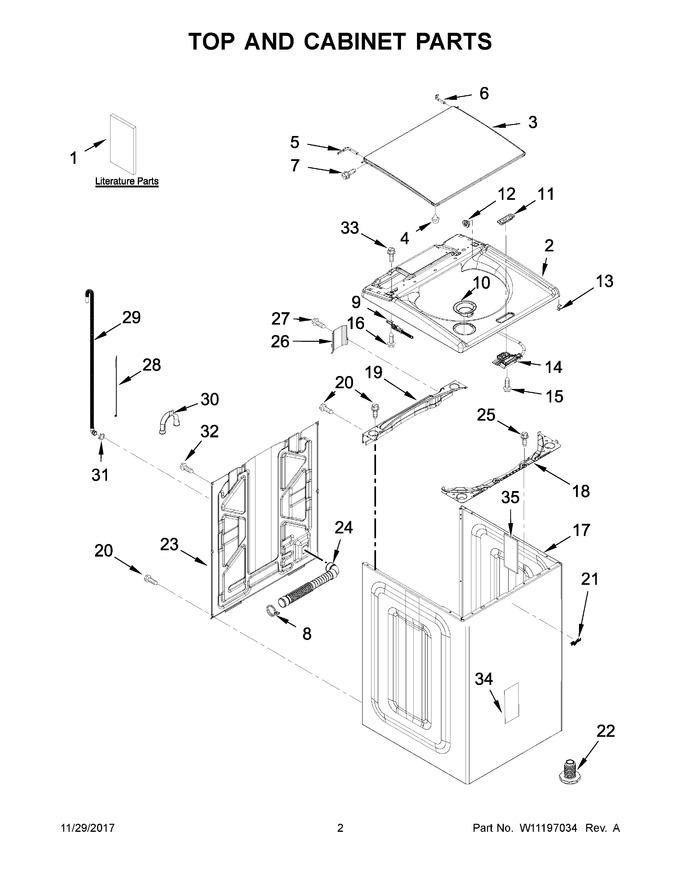

02 - Top And Cabinet Parts
03 - Console And Dispenser Parts
04 - Motor, Basket And Tub Parts
05 - Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11131675 | Installation Instructions |
|
- | |||||
| 2 | W11097645 | Top (white) (Replaces: W10635913) |
|
Immediately | $ 368.83 | ||||
| 3 | W11102314 | Assembly, Lid (glass) (black) (Replaces: W10843825) |
|
Immediately | $ 404.01 | ||||
| 4 | W11398707 | Bumper, Lid (Replaces: W10631074) |
|
Immediately | $ 23.30 | ||||
| 5 | WP8563965 | Hinge, Wire (left) (Replaces: 8563965) |
|
Immediately | $ 30.91 | ||||
| 6 | WP8572974 | Hinge, Wire (right) (Replaces: 8572974) |
|
Immediately | $ 30.50 | ||||
| 7 | W11404293 | Screw (Replaces: W10339706) |
|
Immediately | $ 14.74 | ||||
| 8 | WP285655 | Clamp, Hose (Replaces: W10142630) |
|
Immediately | $ 8.81 | ||||
| 9 | W10861714 | Hinge, Lid (left) (Replaces: W10594141) |
|
$ 197.57 | |||||
| 10 | W11234069 | Dispenser, Bleach (white) (Replaces: W10601839) |
|
$ 104.24 | |||||
| 11 | W11237157 | Bezel, Lid Lock (white) (Replaces: W10630254) |
|
$ 30.61 | |||||
| 12 | W11168238 | Spacer, Lid Hinge (white) (Replaces: W10708964) |
|
Immediately | $ 18.48 | ||||
| 13 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 11.89 | |||||
| 14 | W10810403 | Assembly, Lid Lock (white) (Replaces: W10787878) |
|
Immediately | $ 101.59 | ||||
| 15 | WPW10273971 | Screw (Replaces: W10273971) |
|
Immediately | $ 7.55 | ||||
| 16 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 17 | W10677265 | Cabinet (white) |
|
$ 511.04 | |||||
| 18 | W11695476 | Brace, Cabinet Top - Front (white) (Replaces: W10724131) |
|
$ 79.79 | |||||
| 19 | W11712680 | Brace, Cabinet Top - Rear (Replaces: W10512626) |
|
$ 103.88 | |||||
| 20 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 21 | W11178521 | Badge (white) (Replaces: W10387117) |
|
Immediately | $ 63.13 | ||||
| 22 | WPW10687506 | Foot Assembly, Leveling (Replaces: W10687506) |
|
Immediately | $ 26.07 | ||||
| 23 | W11417171 | Panel, Rear (Replaces: W10612644) |
|
$ 277.67 | |||||
| 24 | W11246418 | Hose, Internal Drain (Replaces: W10786890) |
|
$ 57.77 | |||||
| 25 | W11568617 | Screw (Replaces: W10567155) |
|
$ 14.72 | |||||
| 26 | W10676061 | Cover, Harness |
|
$ 36.77 | |||||
| 27 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 28 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 8.30 | |||||
| 29 | W11244231 | Hose, Outer Drain Assembly (Replaces: W10221546) |
|
Immediately | $ 32.07 | ||||
| 30 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 83.51 | |||||
| 31 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 32 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 33 | WP313808 | Screw (Replaces: 311932) |
|
$ 8.30 | |||||
| 34 | W11197416 | Absorber, Impact (Replaces: W10688364) |
|
Immediately | $ 23.38 | ||||
| 35 | WP8564458 | Absorber, Impact (Replaces: 8564458) |
|
Immediately | $ 8.38 | ||||
| 10A | W11234070 | Dispenser, Bleach (chrome Shadow) (Replaces: W10601859) |
|
$ 104.24 | |||||
| 11A | W11237158 | Bezel, Lid Lock (chrome Shadow) (Replaces: W10665169) |
|
Immediately | $ 30.65 | ||||
| 12A | W11579387 | Spacer, Lid Hinge (chrome Shadow) (Replaces: W10708966) |
|
$ 17.42 | |||||
| 14A | W10861642 | Assembly, Lid Lock (chrome Shadow) (Replaces: W10787880) |
|
Immediately | $ 151.64 | ||||
| 17A | W10677266 | Cabinet (chrome Shadow) |
|
$ 517.50 | |||||
| 17B | W10744645 | Cabinet (red) |
|
- | |||||
| 18A | W11661767 | Brace, Cabinet Top - Front (chrome Shadow) (Replaces: W10724132) |
|
- | |||||
| 18B | W11661767 | Brace, Cabinet Top - Front (red) (Replaces: W10752892) |
|
- | |||||
| 1A | W11040357 | Owners Manual |
|
- | |||||
| 1B | W10607408 | Tech Sheet |
|
- | |||||
| 1C | W10911988 | Energy Guide |
|
- | |||||
| 1D | W10740587 | Quick Start Guide |
|
- | |||||
| 21A | WPW10393264 | Badge (grey) (Replaces: W10393264) |
|
$ 67.74 | |||||
| 2A | W10649674 | Top (chrome Shadow) |
|
- | |||||
| 2B | W10744647 | Top (red) |
|
- | |||||
| 3A | W11102314 | Assembly, Lid (glass) (chrome Shadow) (Replaces: W10843826) |
|
Immediately | $ 404.01 | ||||
| 9A | W11023747 | Hinge, Lid (right) (Replaces: W10594142) |
|
$ 137.69 |
