SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Main Top


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram

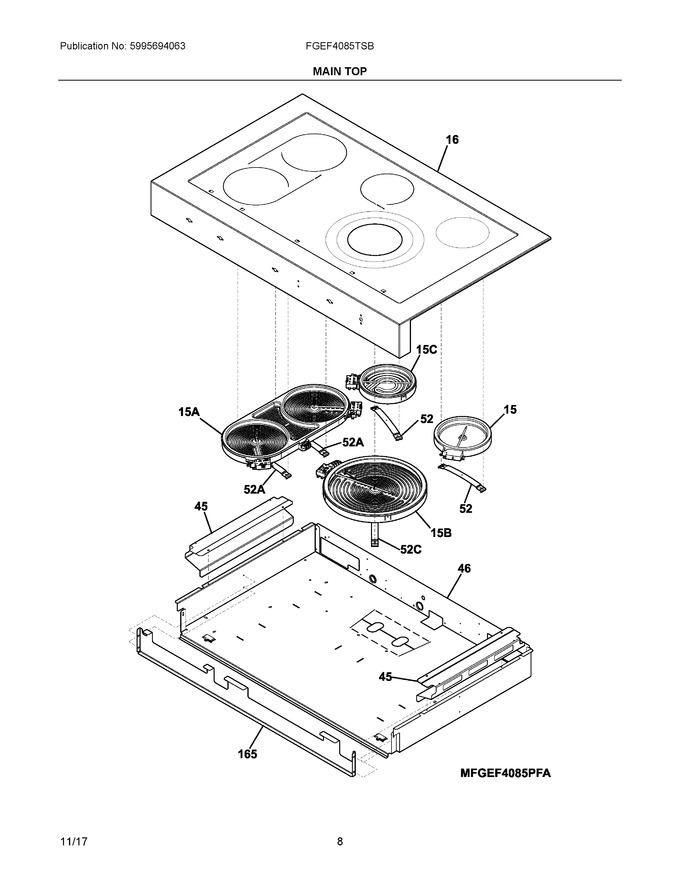

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 136.51
16	5304509013		Main Top, Assembly, Black/stainless		Appelez-nous	-
45	807328401		Bracket, Side Support		Appelez-nous	-
46	807353603		Box, Burner		Appelez-nous	-
52	318122006		Spring, Element Mtg, Small				$ 73.61
165	5304508549		Support, Cooktop Glass		Appelez-nous	-
15A	807219901		Element, Bridge, 1800/2600w			Immediately	$ 343.35
15B	318297810		Element, Triple, 1200/2000/3000w, 6"/9"/12			Immediately	$ 396.15
15C	140273621015		Element, Surface, Warmer, 100 W   (Replaces: 316289800)				$ 39.74
52A	318122008		Spring, Element Mtg, 1800w/3000w				$ 100.89
52C	318122011		Spring, Element Mtg, 1200w/1800w				$ 69.04
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	5304508558		Harness, Wiring, Surface Element, & Indictr Light		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
