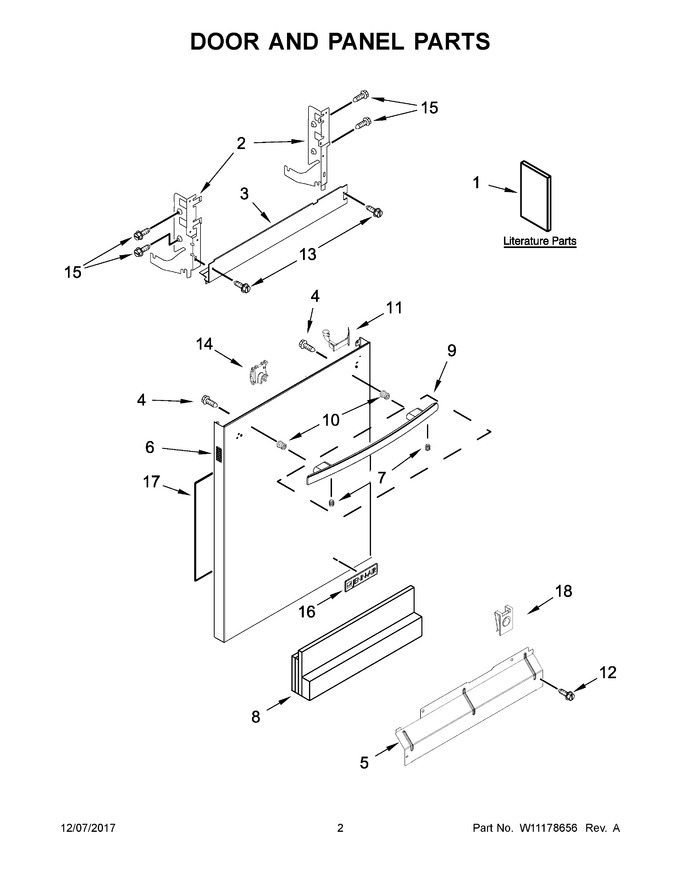

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10806906 | Installation Instructions |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left Hand) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 3 | W10850371 | Barrier, Vapor (Replaces: W10844384) |
|
Immediately | $ 32.88 | ||||
| 4 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 7.55 | ||||
| 5 | W11763736 | Access Panel (black) (Replaces: W10852733) |
|
Immediately | $ 42.25 | ||||
| 6 | W11178669 | Panel, Front (includes 11, 14 & 16) (stainless) (Replaces: W11026610) |
|
$ 403.05 | |||||
| 7 | WP8534008 | Screw, Set (Replaces: 8534008) |
|
$ 9.37 | |||||
| 8 | W11223838 | Insulation, Four Layer (Replaces: W10735304) |
|
Immediately | $ 43.91 | ||||
| 9 | W11178670 | Handle Assembly (stainless) (Replaces: W10716198) |
|
$ 152.84 | |||||
| 10 | WP8564951 | Stud, Mounting (Replaces: 8564951) |
|
Immediately | $ 19.33 | ||||
| 11 | W10901145 | Light Pipe (Replaces: W10854504) |
|
$ 77.23 | |||||
| 12 | WP302868 | Screw (black) (Replaces: 302868) |
|
Immediately | $ 8.18 | ||||
| 13 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 14 | W10692757 | Barrel Nut, Front Panel |
|
$ 16.01 | |||||
| 15 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 16 | WPW10214168 | Nameplate (stainless) (Replaces: W10214168) |
|
$ 85.95 | |||||
| 17 | W11126003 | Insulation, Front Panel (Replaces: W10315897) |
|
Immediately | $ 65.25 | ||||
| 18 | W10910629 | U-nut (Replaces: W10853886) |
|
$ 8.64 | |||||
| 1A | W11125132 | Energy Guide |
|
- | |||||
| 1B | W10901595 | Use & Care Guide |
|
- | |||||
| 1C | W10914074 | Tech Sheet, English |
|
- | |||||
| 1D | W10914075 | Tech Sheet, French |
|
- | |||||
| 2A | W11806608 | Arm, Hinge (right Hand) (Replaces: 8534853) |
|
Immediately | $ 142.24 |
