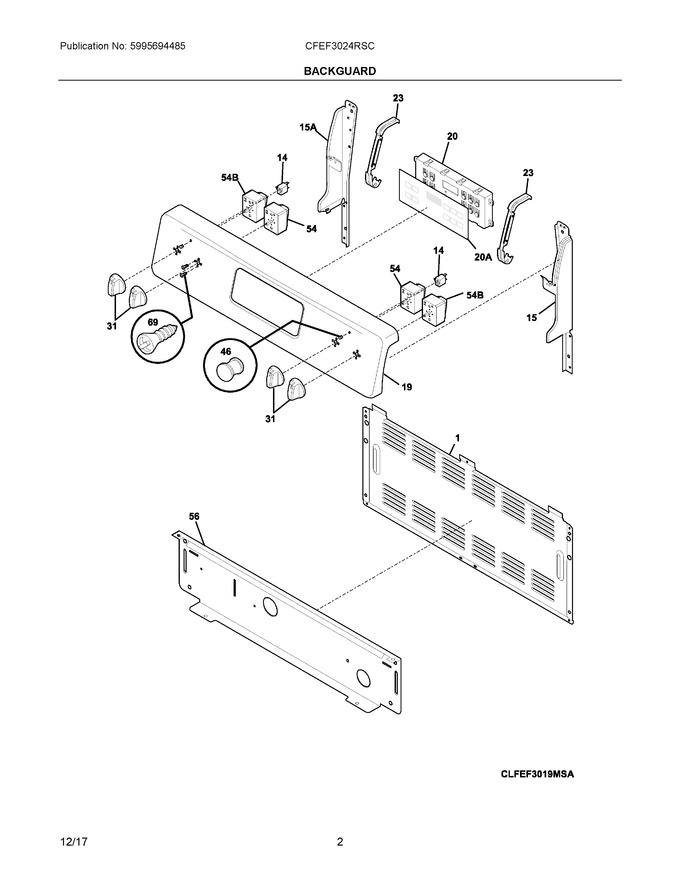

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall   (Replaces: 316281800)				$ 64.04
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 59.52
15	316411405		Support, Backguard, Black, Rh				$ 83.95
19	316456541		Panel, Backguard, Black/stainless, W/overlay				$ 184.17
20	5304510064		Clock, Es330i			Immediately	$ 373.88
23	316441600		Bracket-clock Mtg, Black				$ 22.75
31	316543801		Knob, Control, Black			Immediately	$ 61.53
46	316437900		Lens, Indicator Light				$ 11.45
54	316436000		Switch, Infinite, Small Element			Immediately	$ 89.27
56	316234045		Shield, Backguard, Black, Inner   (Replaces: 316234013)				$ 74.15
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.47
15A	316411404		Support, Backguard, Black, Lh				$ 83.95
20A	316419353		Overlay, Clock, Black, Es330i			Immediately	$ 43.81
54B	316238201		Switch, Infinite Radian, Dual			Immediately	$ 98.89
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96
