SELECT A DIAGRAM

01 - Cover Sheet


02 - Console And Lid Parts

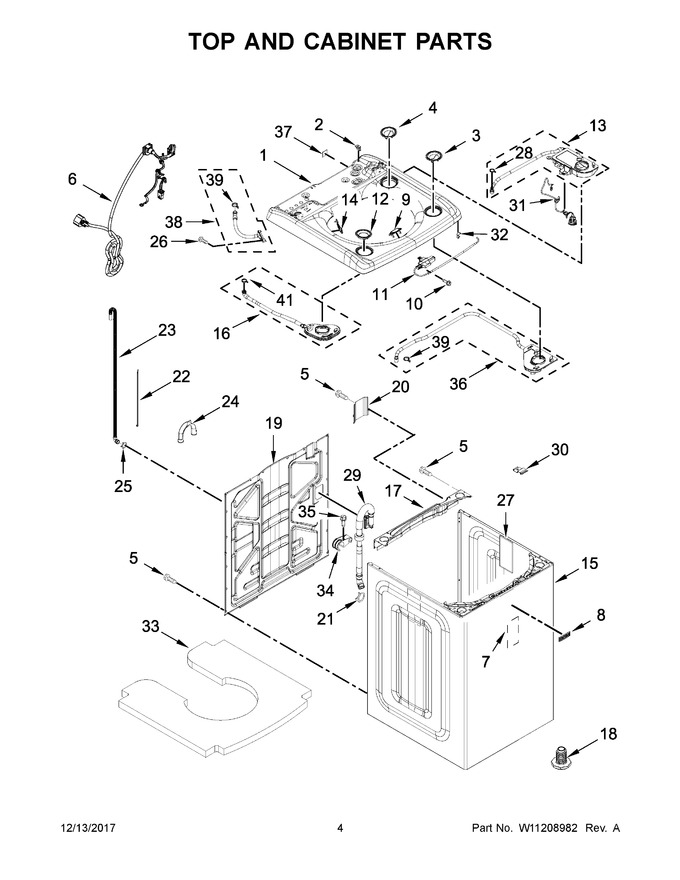

03 - Top And Cabinet Parts


04 - Motor, Basket And Tub Parts


05 - Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10747123		Top (chrome Shadow)		Appelez-nous	-
2	W10711050		Grommet, Screw		Appelez-nous	-
3	W10749759		Bezel, Fabric Softener Dispenser (grey)		Appelez-nous	-
4	W10749769		Bezel, Bleach Dispenser (grey)				$ 30.64
5	W11685943		Screw   (Replaces: W10660565)				$ 14.97
6	W10734500		Power Cord				$ 130.47
7	W11197416		Absorber, Impact   (Replaces: W10688364)			Immediately	$ 23.38
8	WPW10612926		Badge   (Replaces: W10612926)			Immediately	$ 39.60
9	W10747826		Bezel, Lid Lock (grey)				$ 24.94
10	W11501418		Screw   (Replaces: 8533961)		Appelez-nous	-
11	W11188327		Assembly, Lid Lock   (Replaces: W10727693)			Immediately	$ 265.39
12	W10749749		Bezel, Detergent Dispenser (grey)				$ 30.59
13	W10749756		Dispenser Assembly, Bleach (grey)				$ 114.81
14	W10522542		Bezel, Fresh Fill (chrome)		Appelez-nous	-
15	W10763699		Cabinet (chrome Shadow)				$ 475.19
16	W11290602		Dispenser Assembly, Detergent (grey)   (Replaces: W10749750)				$ 106.55
17	W10463933		Channel, Front Rear		Appelez-nous	-
18	W11204543		Foot Assembly, Leveling   (Replaces: W10715265)				$ 12.74
19	W10464765		Panel, Rear		Appelez-nous	-
20	W10676061		Cover, Harness				$ 36.77
21	WP285655		Clamp, Hose   (Replaces: W10142630)			Immediately	$ 8.81
22	WPW10339879		Tie, Cable   (Replaces: W10339879)				$ 8.30
23	W11244231		Hose, Outer Drain   (Replaces: W10769870)			Immediately	$ 32.07
24	WPW10280024		U-bend, Drain Hose   (Replaces: W10280024)				$ 83.51
25	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
26	W11700520		Screw   (Replaces: 3400061)				$ 14.28
27	WP8564458		Absorber, Impact   (Replaces: 8564458)			Immediately	$ 8.38
28	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 8.82
29	W11246418		Hose, Internal Drain   (Replaces: W10786890)				$ 57.77
30	WPW10248088		Lock, Top   (Replaces: W10248088)				$ 18.83
31	W11553311		Light Assembly, Basket   (Replaces: W10591941)				$ 33.26
32	WP90016		Clip, Harness   (Replaces: 90016)				$ 11.89
33	W10825092		Absorber, Sound				$ 94.24
34	W10652932		Clip, Hose				$ 42.99
35	WPW10004910		Screw   (Replaces: W10004910)				$ 8.39
36	W11678129		Dispenser Assembly, Fabric Softener (grey)   (Replaces: W10749753)				$ 125.39
37	W10161707		Top, Foam Seal		Appelez-nous	-
38	W10749373		Nozzle Assembly, Fresh Fill		Appelez-nous	-
39	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.82

    View Diagram in Separate Window       Print Part List
