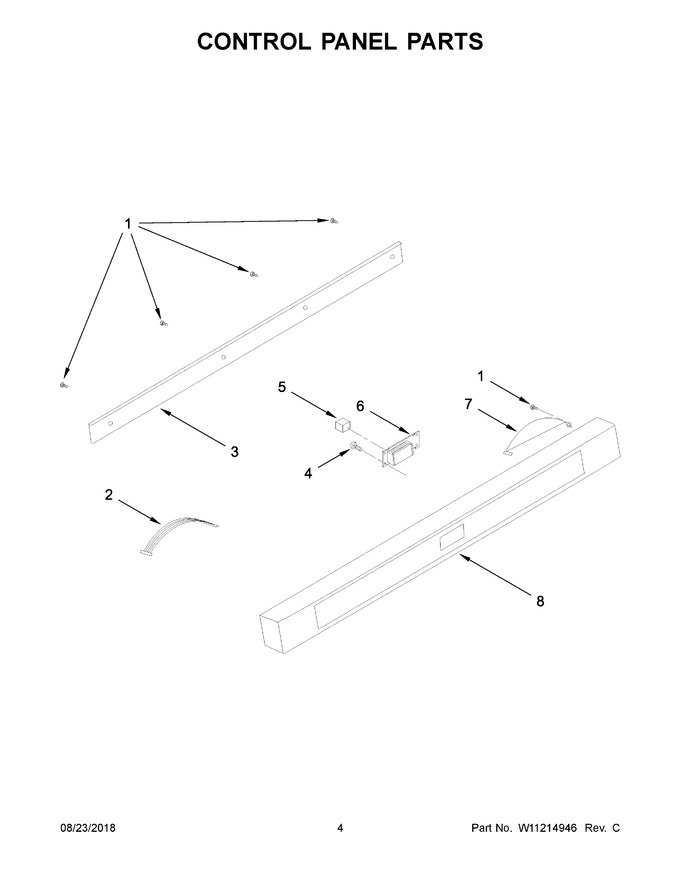

03 - Control Panel Parts
04 - Oven Cavity Parts
05 - Switch Parts
06 - Interior Parts
07 - Base Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3400805 | Screw (zinc) (Replaces: 3400805) |
|
$ 6.80 | |||||
| 2 | W11199895 | Harness, Touch Control |
|
$ 107.96 | |||||
| 3 | W11199889 | Bracket, Panel |
|
- | |||||
| 4 | 8185369 | Screw |
|
- | |||||
| 5 | W11199894 | Cushion, Control |
|
$ 19.12 | |||||
| 6 | W11486764 | Control, Electronic (Replaces: W11199871) |
|
Immediately | $ 285.59 | ||||
| 7 | W11199896 | Wire, Ground |
|
- | |||||
| 8 | W11486769 | Panel, Control (Replaces: W11209952) |
|
$ 740.66 |
