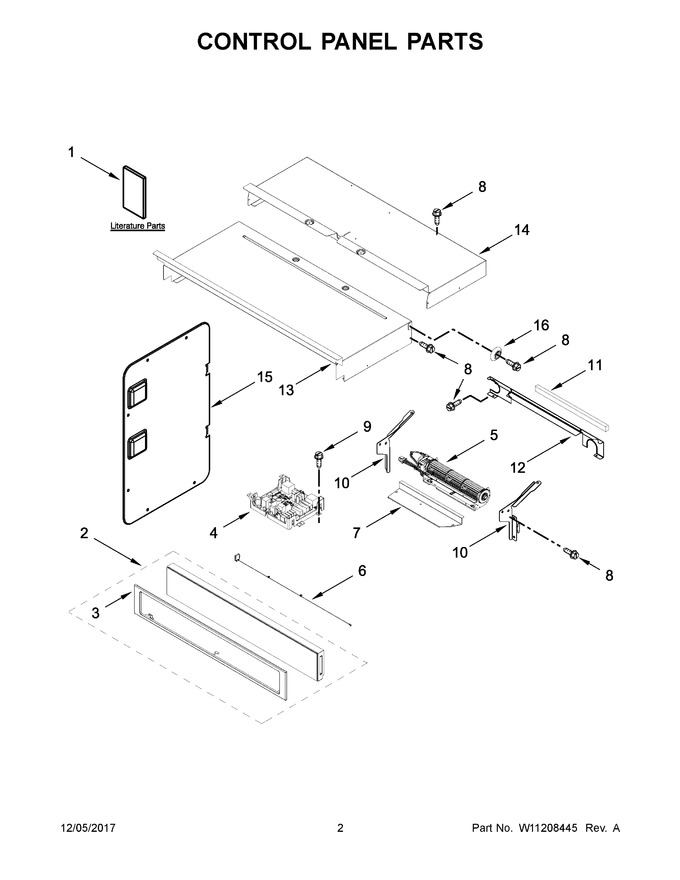

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11129957		Instructions, Installation		Appelez-nous	-
2	W11297726		Assembly, Control Panel (includes Overlay) (black)   (Replaces: W11105017)				$ 834.53
3	W11026970		Skin, Control Panel (black)		Appelez-nous	-
4	W11261167		Manager, Appliance (with Power Supply)   (Replaces: W11040197)			Immediately	$ 472.23
5	W11248652		Blower   (Replaces: W10850518)			Immediately	$ 241.54
6	W11537624		Antenna   (Replaces: W11044576)				$ 106.06
7	W10681157		Cover, Combo Blower		Appelez-nous	-
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10728475		Gasket, Rubber				$ 38.13
12	W10655465		Chassis, Back Divider		Appelez-nous	-
13	W10318158		Chassis, Cover Top Front 30		Appelez-nous	-
14	W10588732		Chassis, Cover Top Back 30				$ 225.86
15	W10655467		Chassis, Combo Side				$ 83.02
16	W10618105		Spacer, Lateral		Appelez-nous	-
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W11108507		Guide, Use & Care (oven)		Appelez-nous	-
1B	W11108508		Guide, Use & Care (microwave Oven)		Appelez-nous	-
1C	W11129946		Sheet, Tech		Appelez-nous	-
1D	W11097305		Guide, Internet Connectivity		Appelez-nous	-
2A	W11297727		Assembly, Control Panel (includes Overlay) (white)   (Replaces: W11105018)				$ 834.54
2B	W11297728		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W11105016)				$ 833.77
3A	W11109371		Skin, Control Panel (white)   (Replaces: W11026969)		Appelez-nous	-
3B	W11113207		Skin, Control Panel (stainless)   (Replaces: W10899877)			Immediately	$ 240.74
NI	4450800		Screw, Grounding				$ 13.47
NI	W11356977		Harness, Cable Tree Assembly   (Replaces: W10889134)				$ 85.07
NI	W11132989		Harness, Door Latch   (Replaces: W10775068)				$ 118.98
NI	W11356990		Harness, Communication   (Replaces: W10834515)				$ 224.43
NI	W11356970		Harness, Solo Gm   (Replaces: W10709980)				$ 165.38
NI	W10874060		Harness, Inverter				$ 148.71
NI	W11356954		Harness, Fan & Turntable   (Replaces: W10874059)				$ 148.75
NI	W10881998		Harness, Main			Immediately	$ 268.50
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	4448664		Clamp, Conduit				$ 21.41
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W10887126		Harness, Ground Console Combo		Appelez-nous	-
