SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven Parts


03 - Control Panel Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Internal Microwave Parts


08 - Top Venting Parts


09 - Microwave Door Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

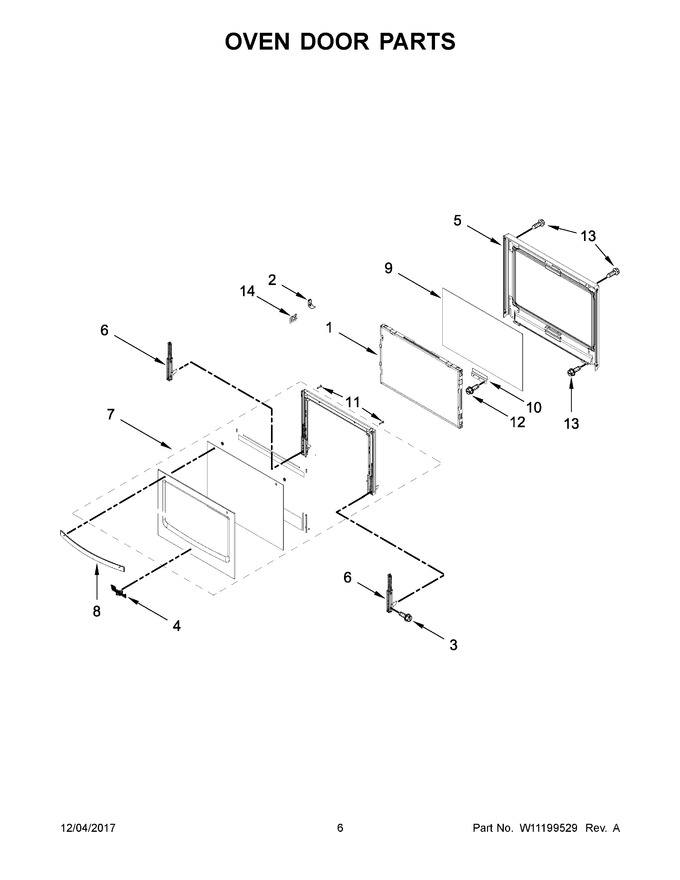

1	WPW10347597		Assembly, Window Pack   (Replaces: W10347597)				$ 294.07
2	W10812024		Spring, Door Glass Fixation   (Replaces: W10284285)				$ 165.76
3	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 8.18
4	W11178521		Nameplate   (Replaces: W10884775)			Immediately	$ 63.13
5	WPW10320793		Assembly, Liner   (Replaces: W10320793)				$ 337.34
6	W11578949		Hinge, Door   (Replaces: W10639071)				$ 80.56
7	W11457681		Assembly, Door (black)   (Replaces: W10866269)				$ 766.68
8	W11115278		Handle, Door (black)   (Replaces: W11022641)				$ 188.91
9	WPW10284902		Glass, Inner   (Replaces: W10284902)				$ 229.81
10	W10853628		Bracket, Glass   (Replaces: W10284297)				$ 163.86
11	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 8.27
12	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
13	WP98008545		Screw (black)   (Replaces: 7101P633-60)				$ 18.60
14	W11025615		Clip, Spring Metal   (Replaces: W10653954)			Immediately	$ 176.14
7A	W11203365		Assembly, Door (white)   (Replaces: W10866270)				$ 489.79
7B	W11111694		Assembly, Door (stainless)   (Replaces: W10866268)				$ 499.08
8A	W11200667		Handle, Door (white)   (Replaces: W11022642)		Appelez-nous	-
8B	W11113204		Handle, Door (stainless)   (Replaces: W10880280)				$ 188.91

    View Diagram in Separate Window       Print Part List
