SELECT A DIAGRAM
New Model Search:

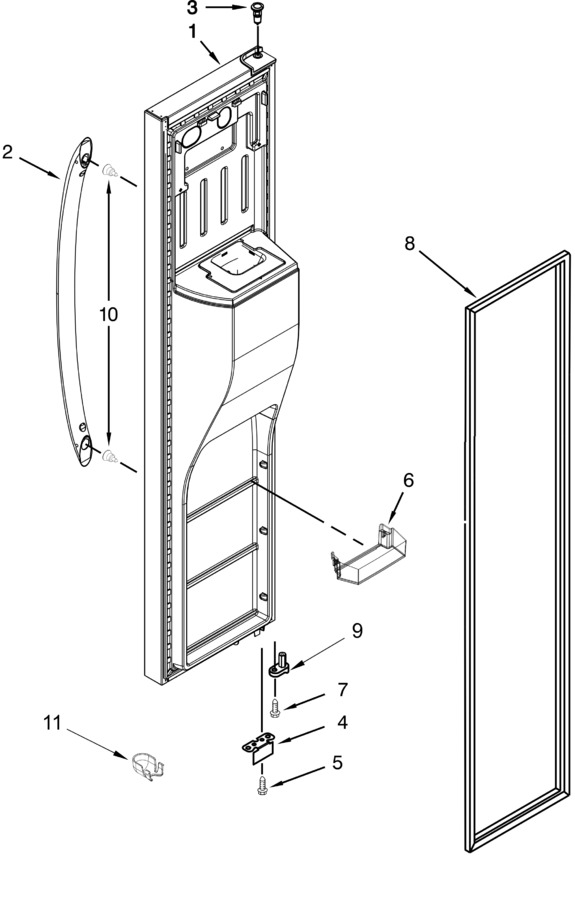

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW11026428 | Door Assembly (black Stainless, Includes Door Gasket) (Replaces: W11026428) |
|
$ 1,510.59 | |||||
| 2 | W11450223 | Handle (black Stainless) (Replaces: W11045529) |
|
Immediately | $ 188.98 | ||||
| 3 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 8.15 | |||||
| 4 | W11557261 | Bracket, Door Stop (black) (Replaces: W10900531) |
|
Immediately | $ 18.67 | ||||
| 5 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 6 | W11212391 | Trivet (Replaces: W11091189) |
|
- | |||||
| 7 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 8 | 2159082 | Gasket, Door (black) (Replaces: W10912133) |
|
$ 332.49 | |||||
| 9 | W11661926 | Cam, Thimble (Replaces: W10900532) |
|
$ 14.02 | |||||
| 10 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 11 | W11566769 | Cover, Wire (Replaces: W11047371) |
|
- |
