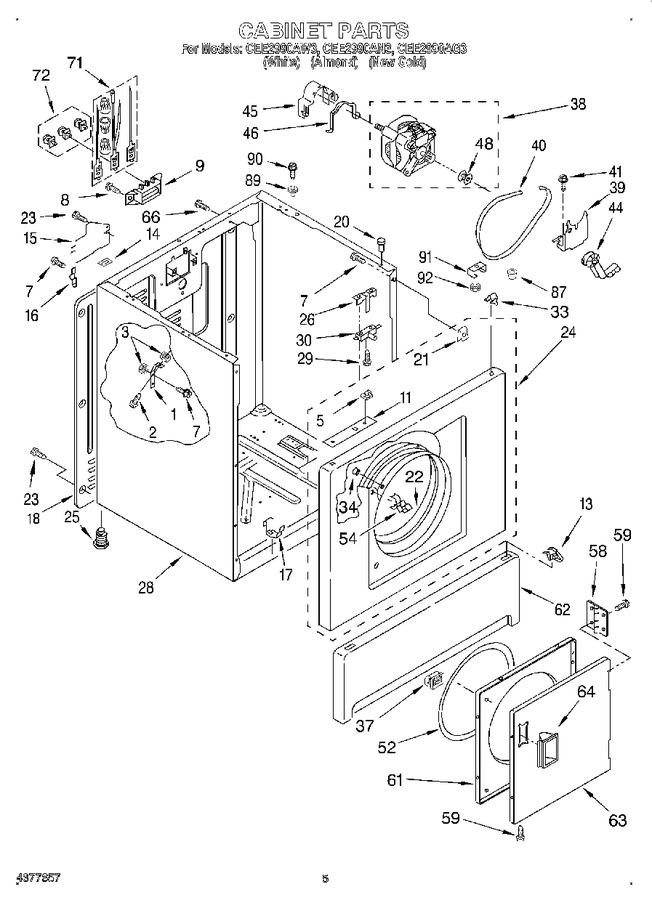

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 688074 | Bracket, Top Lock |
|
- | |||||
| 2 | 354730 | Bolt, 5/16-18 X 2-3/4 |
|
- | |||||
| 3 | 90984 | Nut, 5/16 |
|
- | |||||
| 5 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 9.09 | |||||
| 7 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 8 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 9 | 279320 | Terminal Block (Replaces: 690261) |
|
Immediately | $ 68.25 | ||||
| 11 | 3357341 | Bracket, Front Top Lock |
|
- | |||||
| 13 | WP3388229 | Clip, Toe Panel (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 14 | 18849 | Pad, Top Hinge |
|
$ 21.15 | |||||
| 15 | W11539855 | Cover, Block (Replaces: 3396795) |
|
Immediately | $ 629.75 | ||||
| 16 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 8.21 | |||||
| 17 | WP297092 | Clip, Hinge (Replaces: 297092) |
|
Immediately | $ 8.95 | ||||
| 18 | 3396807 | Panel, Rear |
|
- | |||||
| 20 | 98669 | Locator, Top |
|
$ 12.03 | |||||
| 21 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 11.96 | ||||
| 22 | 279264 | Seal & Bearing Assembly (Replaces: 349462) |
|
Immediately | $ 74.52 | ||||
| 23 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 24 | 693980 | Front Panel Assembly (white) |
|
- | |||||
| 24 | 693981 | Front Panel Assembly (almond) |
|
- | |||||
| 24 | 693984 | Front Panel Assembly (golden Harvest) |
|
- | |||||
| 25 | 49621 | Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| 25 | 49621 | Foot (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 26 | WP691581 | Lever, Door Switch (Replaces: 691581) |
|
Immediately | $ 8.49 | ||||
| 28 | 3399581 | Cabinet Assembly (includes Illus. Nos. 9, 15, 18, & 39) (almond) |
|
- | |||||
| 28 | 3399584 | Cabinet Assembly (includes Illus. Nos. 9, 15, 18, & 39) (gold) |
|
- | |||||
| 28 | 3399580 | Cabinet Assembly (includes Illus. Nos. 9, 15, 18, & 39) (white) |
|
- | |||||
| 29 | WP98129 | Screw, Door Switch (Replaces: 98129) |
|
$ 8.18 | |||||
| 30 | W10820036 | Switch, Door (Replaces: 347207) |
|
Immediately | $ 30.50 | ||||
| 33 | WP18776 | Lock, Front Top (2) (Replaces: 18776) |
|
Immediately | $ 13.31 | ||||
| 34 | 279220 | Clip, Felt Pad (2) (Replaces: 685203) |
|
$ 23.55 | |||||
| 37 | WP3389441 | Catch, Door (Replaces: 3389441) |
|
$ 6.20 | |||||
| 38 | 279827 | Motor Assembly 60 Hz. (Replaces: 3395652) |
|
Immediately | $ 191.95 | ||||
| 39 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 127.65 | ||||
| 40 | 341241 | Belt, Drive (Replaces: 660997) |
|
Immediately | $ 18.15 | ||||
| 41 | 3400500 | Bolt, 5/16-18 X 3/4 |
|
Immediately | $ 14.04 | ||||
| 44 | WP691366 | Idler & Pulley (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 45 | WP3404162 | Clamp, Motor (Replaces: 3404162) |
|
Immediately | $ 8.21 | ||||
| 46 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 8.22 | |||||
| 46 | WP660658 | (alt.) (Replaces: 343481) |
|
$ 8.22 | |||||
| 46 | WP660658 | (alt.) (Replaces: 685441) |
|
$ 8.22 | |||||
| 48 | WP8066184 | Pulley, 60 Hz. (Replaces: 3401143) |
|
Immediately | $ 51.02 | ||||
| 52 | W11613302 | Seal, Door (Replaces: 3390734) |
|
$ 56.31 | |||||
| 54 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 58 | WP348023 | Hinge & Pin Assembly (2) (Replaces: 348023) |
|
$ 9.32 | |||||
| 59 | WP694091 | Screw, Door (Replaces: 694091) |
|
$ 7.55 | |||||
| 61 | 280077 | Door, Rear (Replaces: 695656) |
|
$ 207.46 | |||||
| 62 | 697097 | Toe Panel (golden Harvest) |
|
- | |||||
| 62 | 697095 | Panel, Toe (white) |
|
- | |||||
| 62 | 697096 | Panel, Toe (almond) |
|
- | |||||
| 63 | WP348205 | Door, Front (white) (Replaces: 348205) |
|
Immediately | $ 154.76 | ||||
| 63 | 689319 | Door Front (golden Harvest) |
|
- | |||||
| 63 | 689314 | Door, Front (almond) |
|
- | |||||
| 64 | 689586 | Handle, Door (golden Harvest) |
|
- | |||||
| 64 | WP686711 | Handle, Door (white) (Replaces: 686711) |
|
Immediately | $ 8.35 | ||||
| 64 | 689308 | Handle, Door (almond) |
|
$ 5.70 | |||||
| 66 | W10850756 | Screw, 10-32 X 1/2 (grounding) (Replaces: 697776) |
|
$ 8.20 | |||||
| 71 | 279318 | Terminal, Tinned & Brass (3) |
|
Immediately | $ 106.04 | ||||
| 72 | 279393 | Screw Kit (for Terminal Block) |
|
Immediately | $ 55.66 | ||||
| 87 | 356674 | Wedge, Cone |
|
$ 33.19 | |||||
| 89 | 356837 | Locator, Top |
|
- | |||||
| 90 | 427190 | Screw, 1/20-7/8 |
|
- | |||||
| 91 | WP487939 | Nut (Replaces: 271172) |
|
$ 8.62 | |||||
| 92 | 90984 | Nut, 5/16-18 |
|
- | |||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | ||||||
| LIT3394996 | Label, Operating Instructions |
|
- | ||||||
| LIT3395330 | Instructions, Installation |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 261890 | New Gold |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | ||||||
| LIT3401138 | Label, Wiring Diagram |
|
- | ||||||
| LIT692257 | Sheet, Top Lock Instruction |
|
- | ||||||
| LIT348772 | Instructions, Multi-venting |
|
- |
