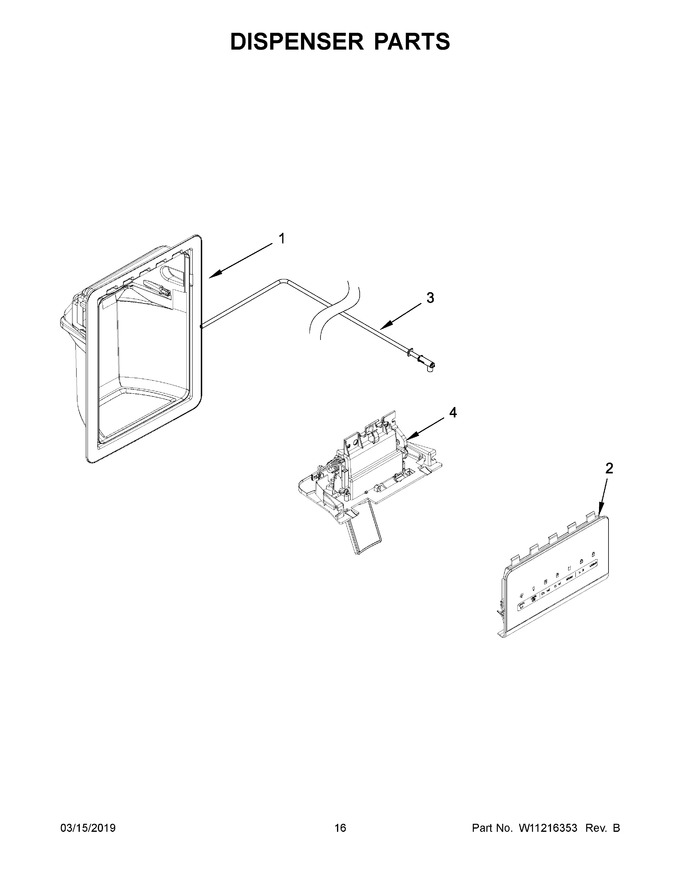

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W11216949		Assembly, User Interface (includes Dispenser Light) (black)   (Replaces: W10922069)				$ 436.04
3	W11163765		Assembly, Water Fitting   (Replaces: W10898317)			Immediately	$ 166.06
4	W11678841		Assembly, Separator (white)   (Replaces: W11024787)		Appelez-nous	-
4A	W11678840		Assembly, Separator (black)   (Replaces: W11024786)				$ 191.13
