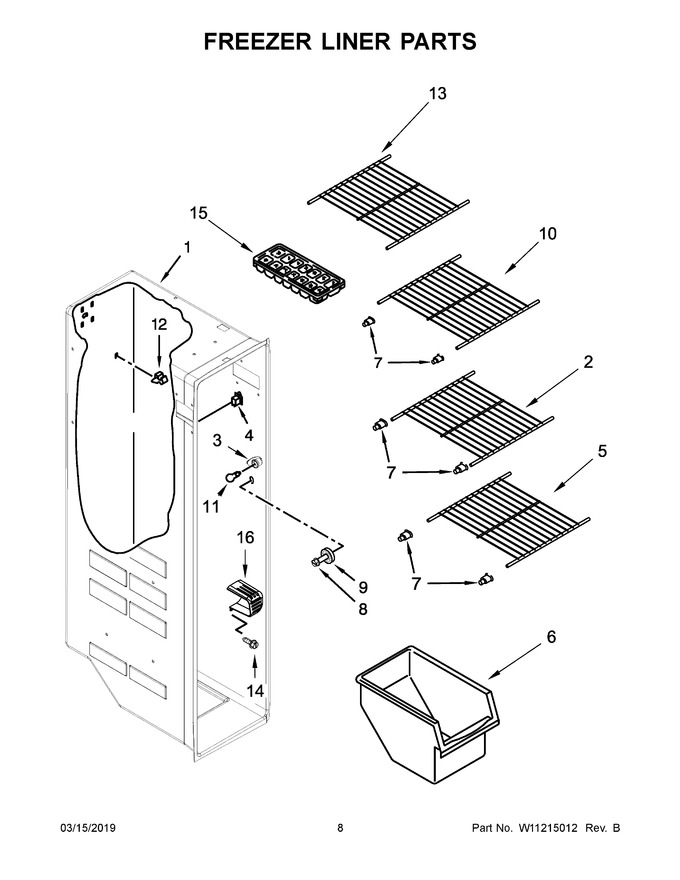

05 - Freezer Liner Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Air Flow Parts


09 - Unit Parts


10 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	WPW10318948		Shelf, Wire   (Replaces: W10318948)				$ 155.23
3	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 106.16
4	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 39.09
5	WPW10318947		Shelf, Wire   (Replaces: W10318947)				$ 91.81
6	W11577967		Bin, Freezer   (Replaces: 2309757)				$ 96.30
7	WPW10130299		Cup, Shelf   (Replaces: W10130299)			Immediately	$ 14.70
8	WP3-24004-109		Screw   (Replaces: W10191954)				$ 9.14
9	W11223328		Assembly, Stud   (Replaces: 2196208)			Immediately	$ 14.77
10	WPW10318961		Shelf, Wire   (Replaces: W10318961)			Immediately	$ 81.55
11	W11216993		Lamp, Led   (Replaces: W11125625)			Immediately	$ 52.46
12	2215823		Clip, Air Duct   (Replaces: 2315163)				$ 10.94
13	W10318945		Shelf, Wire				$ 103.20
14	W10142289		Screw   (Replaces: 3400893)				$ 9.61
15	WP841180A		Tray, Ice   (Replaces: 2151664)			Immediately	$ 47.84
16	W11298978		Cover, Light Lens   (Replaces: 2212340)				$ 98.57
