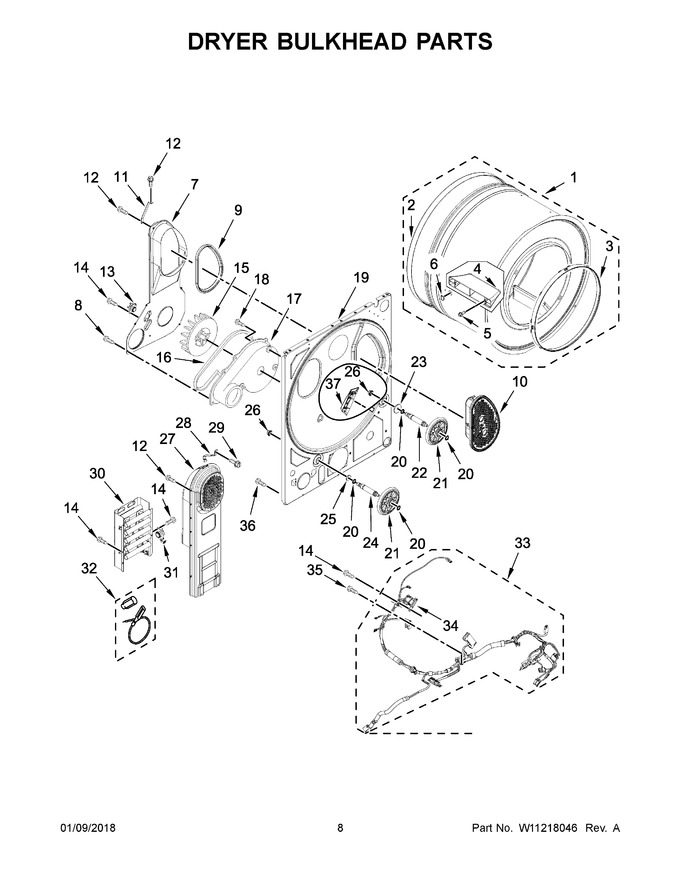

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3391834 | Drum Assembly Complete |
|
$ 372.51 | |||||
| 2 | 279735 | Seal, Drum Rear |
|
Immediately | $ 109.77 | ||||
| 3 | WP3394508 | Ring, Bearing |
|
$ 131.86 | |||||
| 4 | 00685207 | Baffle, Drum (Replaces: 685207) |
|
$ 326.00 | |||||
| 5 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 6 | 8066086 | Plug, Drum Hole |
|
$ 11.29 | |||||
| 7 | 696529 | Air Duct Assembly |
|
$ 129.26 | |||||
| 8 | 5303010202 | Screw |
|
$ 5.15 | |||||
| 9 | WP339956 | Seal |
|
Immediately | $ 9.06 | ||||
| 10 | W10828351 | Cover, Lint Screen Outlet |
|
Immediately | $ 69.60 | ||||
| 11 | 345396 | Clip, Air Duct To Bulkhead |
|
- | |||||
| 12 | WP681414 | Screw (Replaces: 3390663) |
|
Immediately | $ 8.47 | ||||
| 13 | AT022 | Thermostat (145~f) (Replaces: 660074) |
|
Immediately | $ 35.17 | ||||
| 14 | WP90767 | Screw |
|
Immediately | $ 8.25 | ||||
| 15 | WP696426 | Wheel, Blower |
|
Immediately | $ 136.69 | ||||
| 16 | 8066094 | Seal, Fan Scroll |
|
$ 9.31 | |||||
| 17 | WP696418 | Fan Scroll (Replaces: 696418) |
|
$ 121.99 | |||||
| 18 | WP339631 | Screw |
|
- | |||||
| 19 | 279848 | Bulkhead (Replaces: 3394204) |
|
$ 364.78 | |||||
| 20 | WPW10512946 | Washer, Tri Ring |
|
Immediately | $ 9.68 | ||||
| 21 | 349241T | Roller, Support (Replaces: 3397590) |
|
Immediately | $ 29.53 | ||||
| 22 | WPW10359269 | Shaft, Drum Roller - Right Hand Thread |
|
Immediately | $ 56.77 | ||||
| 23 | WP3388703 | Washer |
|
$ 7.85 | |||||
| 24 | WPW10359270 | Shaft, Drum Roller - Left Hand Thread |
|
Immediately | $ 72.71 | ||||
| 25 | WP348197 | Washer (Replaces: 348197) |
|
$ 7.55 | |||||
| 26 | W11229607 | Nut, Hex |
|
Immediately | $ 8.64 | ||||
| 27 | WP3401380 | Box, Heater |
|
Immediately | $ 295.25 | ||||
| 28 | 279771 | Clip, Heater Box |
|
$ 15.05 | |||||
| 29 | WP489463 | Screw (Replaces: 489463) |
|
$ 8.25 | |||||
| 30 | WP3403591 | Element, Heater (Replaces: 3403591) |
|
$ 306.83 | |||||
| 31 | WP3404153 | Thermostat (180~f) (Replaces: 3404153) |
|
$ 139.11 | |||||
| 32 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 33 | W11090773 | Harness, Main Dryer Wiring |
|
- | |||||
| 34 | WP3392519 | Fuse, Thermal (91c) |
|
Immediately | $ 24.95 | ||||
| 35 | W10850756 | Screw (Replaces: W10773242) |
|
$ 8.20 | |||||
| 36 | WP308685 | Screw |
|
Immediately | $ 7.87 | ||||
| 37 | W10816105 | Pad, Sensor (Replaces: 3976479) |
|
$ 159.61 |
