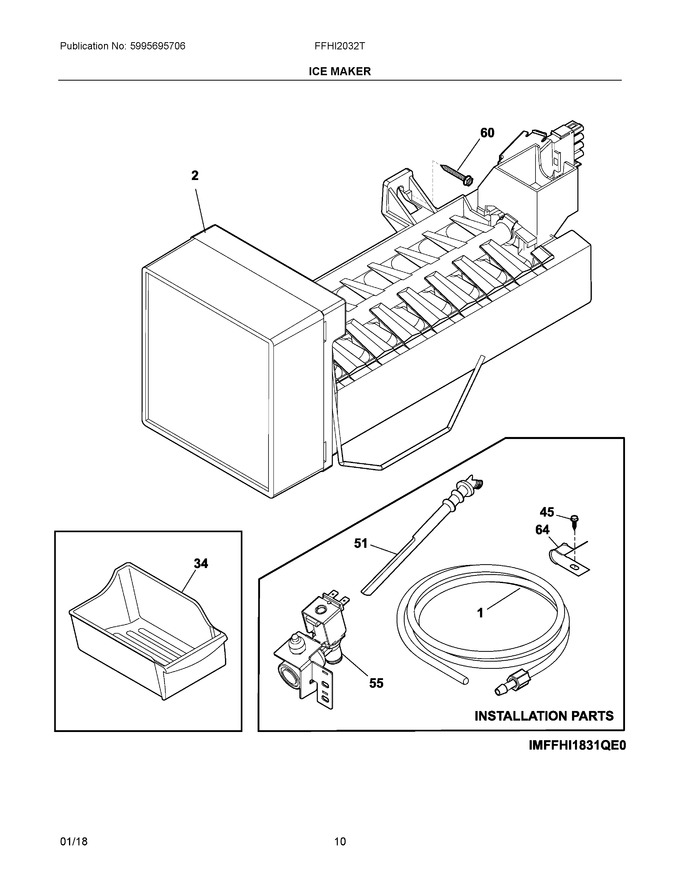

06 - Ice Maker
07 - Wiring Schematic
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241798231 | Ice Maker, Radius Cube, Service, 120 V, W/harness Cover (Replaces: 241798224) |
|
Immediately | $ 223.30 | ||||
| 34 | 240385201 | Container, Ice Bin |
|
$ 108.70 | |||||
| 45 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 15.75 | |||||
| 51 | 241796405 | Tube-water Fill, Extension |
|
$ 20.48 | |||||
| 55 | 242252603 | Valve-water, Solenoid Assy |
|
Immediately | $ 81.27 | ||||
| 60 | 218362501 | Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2) |
|
$ 13.39 | |||||
| 64 | 5304455846 | Clamp, .31 Id, Steel, Water Tube |
|
$ 11.81 | |||||
| 1A | 241850615 | Tube-water Inlet, Inlet Valve, To I/m Inlet (Replaces: 218976915) |
|
$ 38.59 | |||||
| NI | 240561701 | Seal-water Inlet, Inlet Valve, To Ice Maker |
|
Immediately | $ 22.84 | ||||
| NI | 218990901 | Clip-wire |
|
$ 82.69 |
