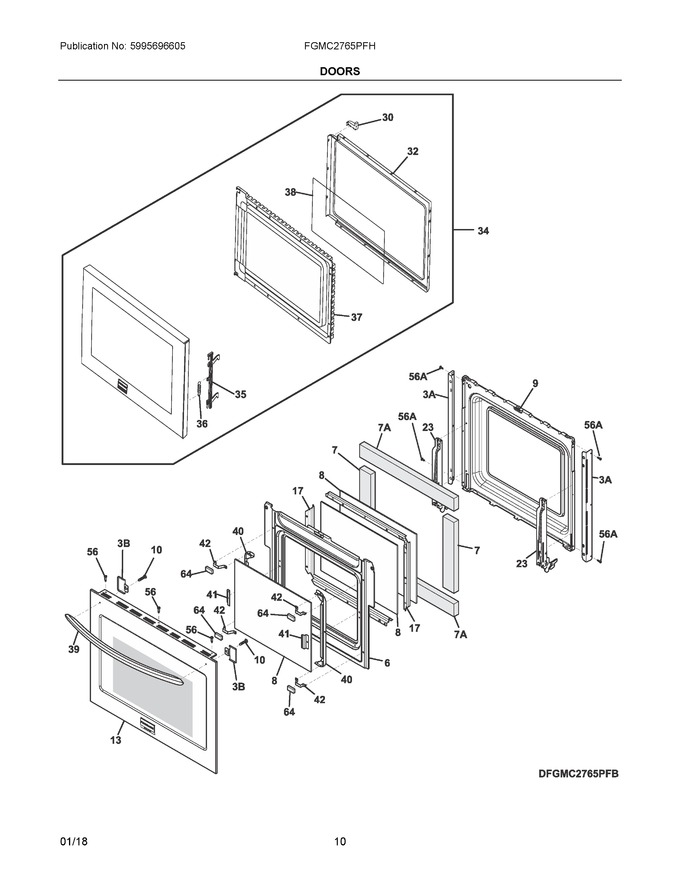

04 - Lower Oven


05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	139014203		Baffle, Door		Appelez-nous	-
7	318372017		Insulation, Door				$ 18.11
8	139085803		Glass, Oven Door, Heat Barrier, Hb1   (Replaces: 318212252)			Immediately	$ 120.50
9	139002913		Liner, Oven Door				$ 165.38
10	5304414648		Screw, Handle Mtg.				$ 15.75
13	5304515550		Door Assembly, Outer, Stainless/black, W/trim & Badge		Appelez-nous	-
17	318264735		Spacer, Glass, (2)				$ 71.66
23	316575917		Hinge, Oven Door, Red				$ 74.81
30	5304442145		Door Stop		Appelez-nous	-
32	5304440861		Choke Cover, Inner Door				$ 81.13
34	5304493449		Door Assembly, Complete, Stainless, W/badge				$ 309.49
35	5304441893		Latch, Door			Immediately	$ 54.34
36	5304440316		Spring, Door Latch			Immediately	$ 67.78
37	5304440857		Panel, Inner Door, Black				$ 213.66
38	5304440860		Seal, Door, Film				$ 63.09
39	318919602		Handle, Door, Stainless				$ 294.53
40	318242702		Bracket, Glass Holder, Door, (2)				$ 21.91
41	318370602		Bracket, Glass Panel, (2)				$ 15.17
42	318382302		Bracket, Glass Retainer, (4)				$ 56.46
56	5304480396		Screw, 8-18 X 0.375   (Replaces: 5300803416)				$ 12.60
64	318165800		Spacer, Glass, Foam				$ 19.69
3A	139014401		Trim, Oven Door, Black, Side, (2), Vented				$ 36.24
3B	318262104		Cover, Rear Door, Black, (2)				$ 27.77
56A	5303324184		Screw, Truss Head, #8-32 X 3/8   (Replaces: 809136201)			Immediately	$ 15.75
7A	318372018		Insulation, 20.5 X 2.375, 1" Thick, (2)				$ 15.75
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75
