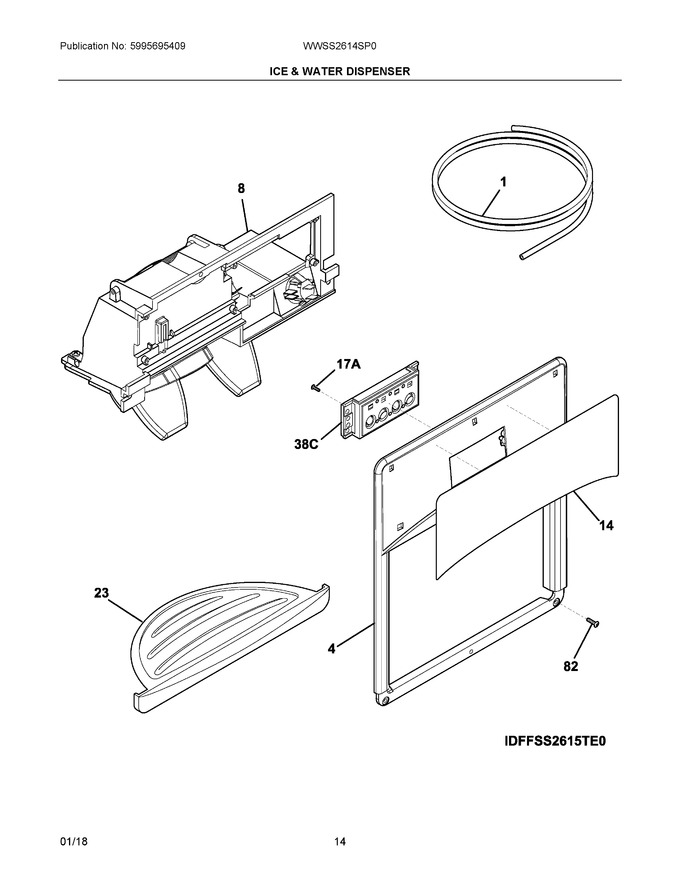

08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube, Water, 60", Natural, Door			Immediately	$ 66.94
4	241679001		Cover-module, White				$ 84.12
8	240563637		S/a Pur-module, I&w White   (Replaces: 240563632)				$ 351.54
14	240570212		Label-module Cover, White		Appelez-nous	-
23	241649007		Drip Tray, White   (Replaces: 241649001)				$ 32.87
17A	5304433185		Screw, Switch Mtg.		Appelez-nous	-
38C	5304525097		Switch   (Replaces: 241679101)				$ 115.44
NI	218515403		Clip-grille				$ 32.29
NIA	218976419		Tube-water Inlet, 5/16 - 34", Yellow, Valve To Door				$ 25.20
NIB	218976420		Tube-water Inlet, Inlet Valve, To Filter				$ 49.61
NIC	241850615		Tube-water Inlet, Inlet Valve, To I/m Inlet   (Replaces: 218976915)				$ 38.59
NICA	241873301		Harness-wiring   (Replaces: 241686001)				$ 12.39
NID	240561701		Seal-water Inlet, Inlet Valve, To Ice Maker			Immediately	$ 22.84
