01 - Cover Sheet
02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:

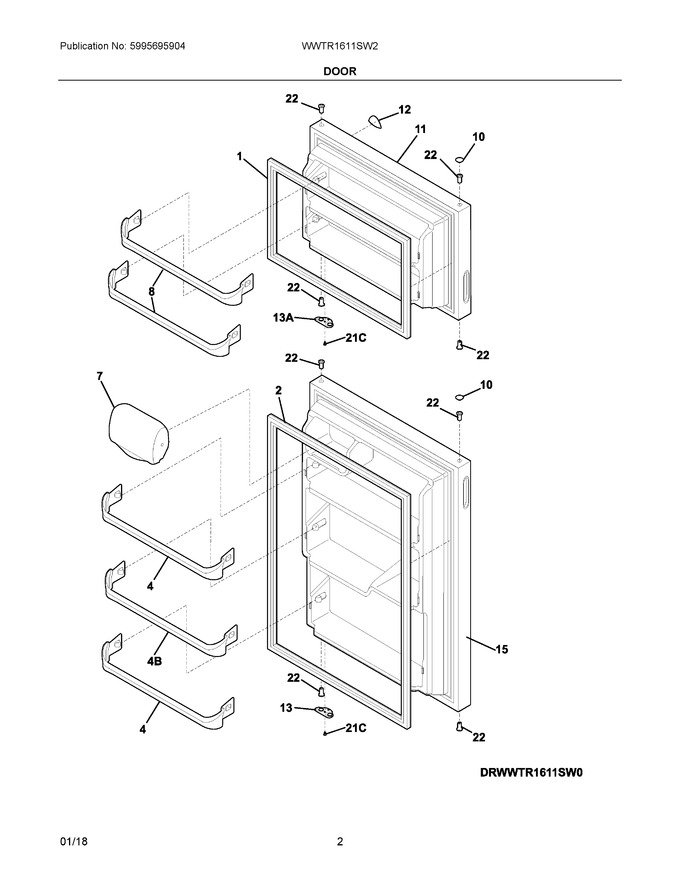

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242193201 | Gasket, Freezer Door, White, Magnetic |
|
Immediately | $ 221.20 | ||||
| 2 | 242193204 | Gasket-refr Door, White, Magnetic |
|
Immediately | $ 215.27 | ||||
| 4 | 240535101 | Rack-door |
|
Immediately | $ 31.74 | ||||
| 7 | 240337712 | Door-dairy |
|
Immediately | $ 40.45 | ||||
| 8 | 240535001 | Rack-door |
|
Immediately | $ 53.55 | ||||
| 10 | 240381301 | Plug-button, White, Hinge Brg Hole, (2) |
|
Immediately | $ 21.06 | ||||
| 11 | 240425104 | Panel, Freezer Door, White, Complete, W/pocket Handle |
|
$ 277.99 | |||||
| 12 | 240415701 | Nameplate |
|
- | |||||
| 13 | 240312421 | Door Stop, White, Ref |
|
$ 16.85 | |||||
| 15 | 240428804 | Panel-refr Door, White, Complete Assy |
|
$ 276.62 | |||||
| 22 | 5304507146 | Bearing-hinge, Natural, (8) |
|
Immediately | $ 8.43 | ||||
| 13A | 240312414 | Door Stop, White, Frzr |
|
$ 21.26 | |||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| 4B | 240535201 | Rack-door |
|
Immediately | $ 33.71 |
