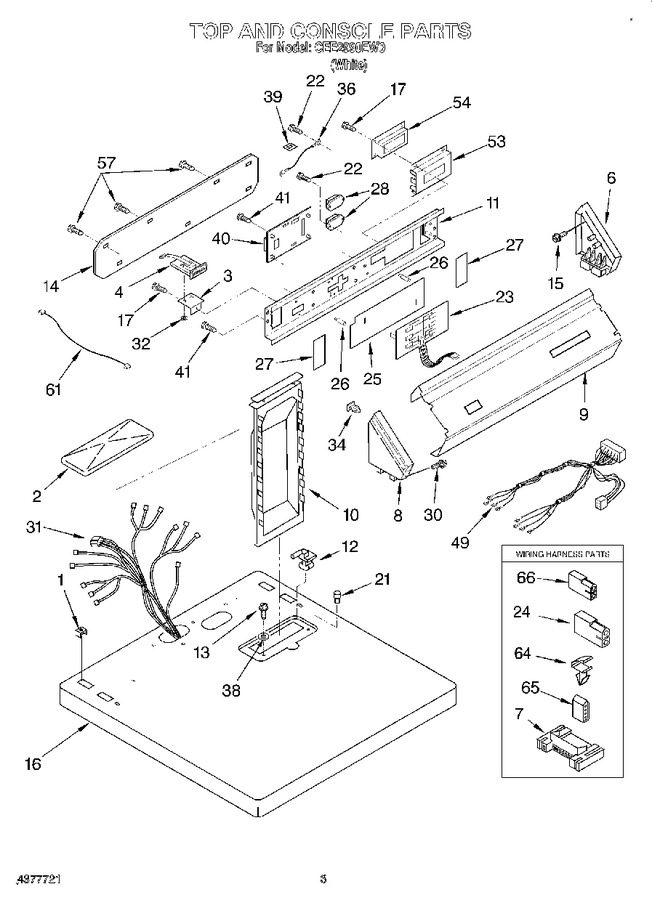

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP357213 | Nut,push-in (Replaces: 357213) |
|
$ 7.39 | |||||
| 2 | 688150 | Cover, Lint Screen |
|
- | |||||
| 3 | 3949607 | Bracket, Card Reader |
|
- | |||||
| 4 | 3949598 | Card Reader |
|
- | |||||
| 6 | 3949737 | Cap, End (r.h.) |
|
$ 49.53 | |||||
| 7 | 3395683 | Housing, Connector (motor) |
|
Immediately | $ 51.86 | ||||
| 8 | 3949734 | Cap, End (l.h.) |
|
- | |||||
| 9 | 3402625 | Panel, Control |
|
- | |||||
| 10 | WP349639 | Handle & Lint Screen Assembly (Replaces: 349639) |
|
Immediately | $ 37.21 | ||||
| 11 | 3402628 | Bracket, Control |
|
- | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 339230) |
|
$ 7.72 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 339229) |
|
$ 7.72 | |||||
| 13 | W11693756 | Screw, 8-15 X 3/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 14 | 386367 | Panel, Rear |
|
- | |||||
| 15 | WPW10109200 | Screw, 13-16 X 5/8 (Replaces: 97787) |
|
Immediately | $ 8.00 | ||||
| 16 | 3406410 | Top |
|
- | |||||
| 17 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 21 | 297535 | Bumper, Lint Lid |
|
- | |||||
| 22 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 23 | 3950772 | Switch, Membrane |
|
$ 115.59 | |||||
| 24 | 717253 | Receptacle (2-way) |
|
- | |||||
| 25 | 3950773 | Backer Plate |
|
- | |||||
| 26 | 3950774 | Mounting Stud |
|
- | |||||
| 27 | 3950775 | Backer Plate (side) |
|
- | |||||
| 28 | WP8566493 | Relay, Power (115 Volt Ac) (Replaces: 697812) |
|
$ 90.35 | |||||
| 30 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 8.11 | |||||
| 31 | 3402739 | Harness, Wiring |
|
- | |||||
| 32 | 3406192 | Nut, Push-in |
|
- | |||||
| 34 | 689559 | Nut, Push-in |
|
- | |||||
| 36 | 690853 | Wire, Ground |
|
- | |||||
| 38 | 237446 | Washer |
|
- | |||||
| 39 | W10113937 | Clip, Ground (Replaces: 357572) |
|
$ 10.83 | |||||
| 40 | 3402740 | Board, Control |
|
- | |||||
| 41 | WPW10366705 | Screw & Washer (Replaces: 3393909) |
|
$ 7.50 | |||||
| 49 | 3402742 | Harness, Console |
|
- | |||||
| 53 | 3950779 | Bezel, Display |
|
- | |||||
| 54 | 3950778 | Display, Eletronic (includes Item 61) |
|
- | |||||
| 57 | WP693995 | Screw, Hex Head Washer (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 61 | 3406407 | Vfd Cable |
|
- | |||||
| 64 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.79 | |||||
| 65 | 342529 | Plug (4-way) |
|
- | |||||
| 66 | 717252 | Receptacle, 2 Way |
|
- |
