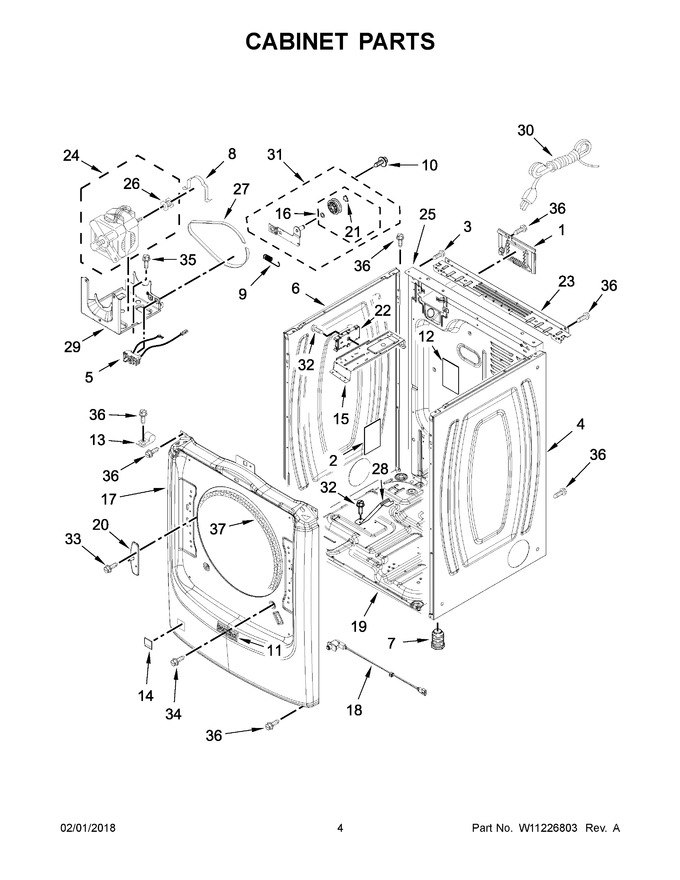

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Burner Assembly Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10819767 | Cover, Terminal Block (Replaces: 8317339) |
|
- | |||||
| 2 | W11668653 | Panel, Dampening (Replaces: W10836097) |
|
$ 29.48 | |||||
| 3 | W10850756 | Screw (Replaces: W10773242) |
|
$ 7.76 | |||||
| 4 | W11310043 | Panel, Side (right) (white) (Replaces: W10469589) |
|
$ 293.46 | |||||
| 5 | W11662087 | Switch, Broken Belt (Replaces: W10774832) |
|
$ 52.35 | |||||
| 6 | W11233548 | Panel, Side (left) (white) (Replaces: W10468495) |
|
$ 248.89 | |||||
| 7 | 49621 | Foot, Dryer |
|
Immediately | $ 8.55 | ||||
| 8 | WPW10121316 | Clamp, Motor Mount |
|
Immediately | $ 25.68 | ||||
| 9 | WPW10446781 | Spring, Idler |
|
Immediately | $ 24.57 | ||||
| 10 | WP3389420 | Screw |
|
$ 8.02 | |||||
| 11 | W10908007 | Badge, Maytag (Replaces: W10639171) |
|
$ 60.95 | |||||
| 12 | W11409002 | Pad, Foam (Replaces: W10504381) |
|
$ 22.63 | |||||
| 13 | 3978776 | Bracket, Gas Pipe |
|
- | |||||
| 14 | W10811916 | Plug, Front Panel (white) |
|
$ 15.71 | |||||
| 15 | W10259611 | Bracket, Control |
|
$ 127.30 | |||||
| 16 | 279640 | Assembly, Pulley |
|
Immediately | $ 32.51 | ||||
| 17 | W11123144 | Panel, Front (white) (Replaces: W10651060) |
|
Immediately | $ 200.47 | ||||
| 18 | W11427601 | Door Switch, Snap In (Replaces: W10569114) |
|
$ 72.89 | |||||
| 19 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 347.96 | |||||
| 20 | WPW10208250 | Strike, Door (Replaces: W10208250) |
|
$ 41.77 | |||||
| 21 | WPW10512946 | Washer, Tri Ring |
|
Immediately | $ 8.80 | ||||
| 22 | W11537215 | Control Board (Replaces: W10847936) |
|
Immediately | $ 340.42 | ||||
| 23 | WPW10208382 | Bracket, Rear (Replaces: W10208382) |
|
$ 41.56 | |||||
| 24 | W11511154 | Assembly, Motor (Replaces: W10806758) |
|
Immediately | $ 269.07 | ||||
| 25 | W10487430 | Panel, Rear |
|
Immediately | $ 340.11 | ||||
| 26 | WP8066184 | Pulley, Motor (Replaces: 8066184) |
|
Immediately | $ 51.02 | ||||
| 27 | WPW10112954 | Belt, Drive (Replaces: W10112954) |
|
Immediately | $ 100.30 | ||||
| 28 | W10181903 | Bracket, Burner |
|
- | |||||
| 29 | W11481730 | Bracket, Motor Mounting (Replaces: W10242878) |
|
Immediately | $ 87.83 | ||||
| 30 | W10869140 | Cord, Power |
|
- | |||||
| 31 | W10837240 | Assembly, Idler |
|
Immediately | $ 35.78 | ||||
| 32 | WP693995 | Screw |
|
Immediately | $ 7.19 | ||||
| 33 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.03 | |||||
| 34 | WP308685 | Screw |
|
Immediately | $ 7.87 | ||||
| 35 | 5303010202 | Screw |
|
$ 5.15 | |||||
| 36 | WP488729 | Screw |
|
Immediately | $ 7.79 | ||||
| 37 | WP3387242 | Seal, Front Panel |
|
Immediately | $ 31.42 | ||||
| 14A | W10391496 | Plug, Front Panel (chrome Shadow) |
|
- | |||||
| 17A | W11203814 | Panel, Front (chrome Shadow) (Replaces: W10637127) |
|
$ 310.61 | |||||
| 4A | W11321018 | Panel, Side (right) (chrome Shadow) (Replaces: W10474189) |
|
$ 295.95 | |||||
| 6A | W11315726 | Panel, Side (left) (chrome Shadow) (Replaces: W10468496) |
|
Immediately | $ 306.32 | ||||
| NI | 49621 | Foot, Optional (extended Length Package Of 2) (not Included) |
|
Immediately | $ 8.55 | ||||
| NI | W10323246 | Dryer Exhaust Kit Not Included, Kit, 4-way Vent |
|
Immediately | $ 85.68 |
