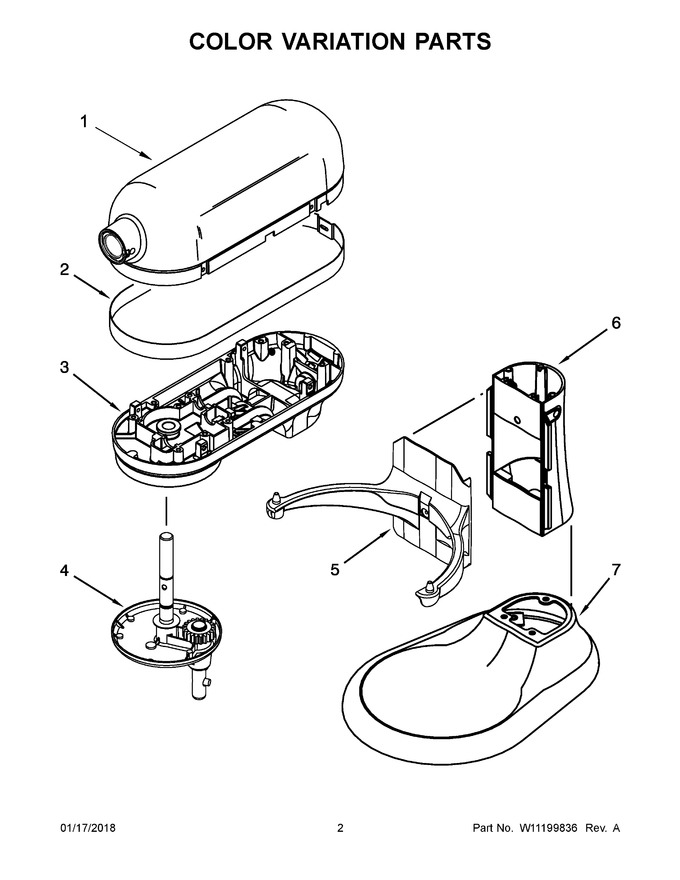

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9705300 | Motor Housing (empire Red) |
|
$ 88.20 | |||||
| 2 | W10809493 | Trim Band (black) |
|
$ 40.81 | |||||
| 3 | 9706331 | Lower Gearcase (empire Red) |
|
$ 92.72 | |||||
| 4 | WP9708180 | Planetary (empire Red) (Replaces: 9708180) |
|
Immediately | $ 71.94 | ||||
| 5 | 9707883 | Bowl Support & Pins (empire Red) |
|
- | |||||
| 6 | 9705324 | Column & Pins (empire Red) |
|
- | |||||
| 7 | 9705348 | Base & Foot Assembly (empire Red) |
|
- | |||||
| 1A | 9703433 | Motor Housing (metallic Chrome) |
|
$ 90.15 | |||||
| 3A | 9706306 | Lower Gearcase (metallic Chrome) |
|
$ 82.38 | |||||
| 4A | WP9708175 | Planetary (metallic Chrome) (Replaces: 9708175) |
|
Immediately | $ 70.69 | ||||
| 5A | 9709123 | Bowl Support & Pins (metallic Chrome) |
|
- | |||||
| 6A | 9703349 | Column & Pins (metallic Chrome) |
|
- | |||||
| 7A | 9703346 | Base & Foot Assembly (metallic Chrome) |
|
- |
