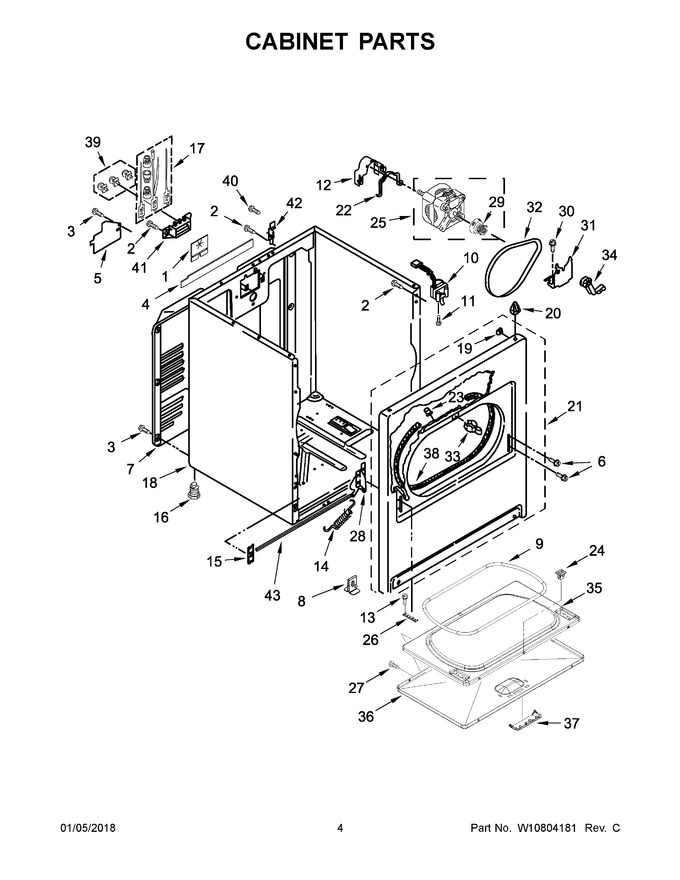

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11627518		Pad, Power Cord   (Replaces: W10782659)				$ 22.53
2	WP339631		Screw		Appelez-nous	-
3	WP693995		Screw			Immediately	$ 7.55
4	W10685675		Seal, Rear Panel				$ 19.85
5	W11298298		Cover, Terminal Block   (Replaces: W10571619)				$ 93.91
6	60G40W		Screw			Immediately	$ 14.68
7	W11626083		Panel, Rear   (Replaces: W10634729)				$ 136.22
8	W10575896		Clip, Spring				$ 15.15
9	W10906683		Seal, Door   (Replaces: W10823580)				$ 134.96
10	WP3406107		Switch, Door   (Replaces: W10569603)			Immediately	$ 31.20
11	WP3395530		Screw				$ 8.57
12	WP3404162		Clamp, Motor (with Shield)   (Replaces: 3404162)			Immediately	$ 8.21
13	WP308685		Screw			Immediately	$ 7.87
14	WPW10041960		Spring, Door   (Replaces: W10041960)			Immediately	$ 42.70
15	W10854425		Clip, Front Panel			Immediately	$ 16.34
16	W11025920		Foot, Dryer   (Replaces: W10561321)			Immediately	$ 24.69
17	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 106.04
18	8533643		Cabinet (white)   (Replaces: 8530603)				$ 419.22
19	WP98234		Clip, Ground			Immediately	$ 11.96
20	WP8066092		Lock, Front Top   (Replaces: 8066092)			Immediately	$ 20.48
21	279443		Panel, Front (white)   (Replaces: W10664693)				$ 405.51
22	WPW10121316		Clamp, Motor Mount			Immediately	$ 26.96
23	279220		Clip, Felt Pad				$ 23.55
24	279570		Assembly, Door Catch			Immediately	$ 8.89
25	279827		Assembly, Motor   (Replaces: W10396029)			Immediately	$ 191.95
26	W11252547		Clip, Hinge   (Replaces: 337189)				$ 22.46
27	WP488627		Screw   (Replaces: 342055)				$ 8.11
28	WP8066056		Hinge, Door (right)   (Replaces: 8066056)			Immediately	$ 103.36
29	WP8066184		Pulley, Motor   (Replaces: 8066184)			Immediately	$ 51.02
30	3400500		Bolt			Immediately	$ 14.04
31	WP348780		Base, Motor			Immediately	$ 127.65
32	341241		Belt, Drive   (Replaces: W10131364)			Immediately	$ 18.15
33	279570		Strike, Door			Immediately	$ 8.89
34	WP691366		Idler Assembly			Immediately	$ 22.47
35	WP695737		Door, Rear				$ 267.29
36	W10861223		Door, Front (white)   (Replaces: W10714515)				$ 233.28
37	W10861225		Handle, Door (white)   (Replaces: W10714516)			Immediately	$ 54.26
38	W11035878		Assembly, Seal And Bearing   (Replaces: W10803476)			Immediately	$ 78.78
39	279393		Screw Kit, Terminal Block			Immediately	$ 55.66
40	5303010202		Screw				$ 5.15
41	WP3397659		Block, Terminal				$ 24.17
42	WP8066217		Hinge, Top   (Replaces: 8066217)				$ 8.21
43	W11596046		Seal, Spill Guard   (Replaces: W11172310)			Immediately	$ 54.09
28A	WP8066057		Hinge, Door (left)   (Replaces: 8066057)				$ 100.95
NI	49621		Foot, Optional (extended Length Package Of 2) (not Included)			Immediately	$ 8.55
