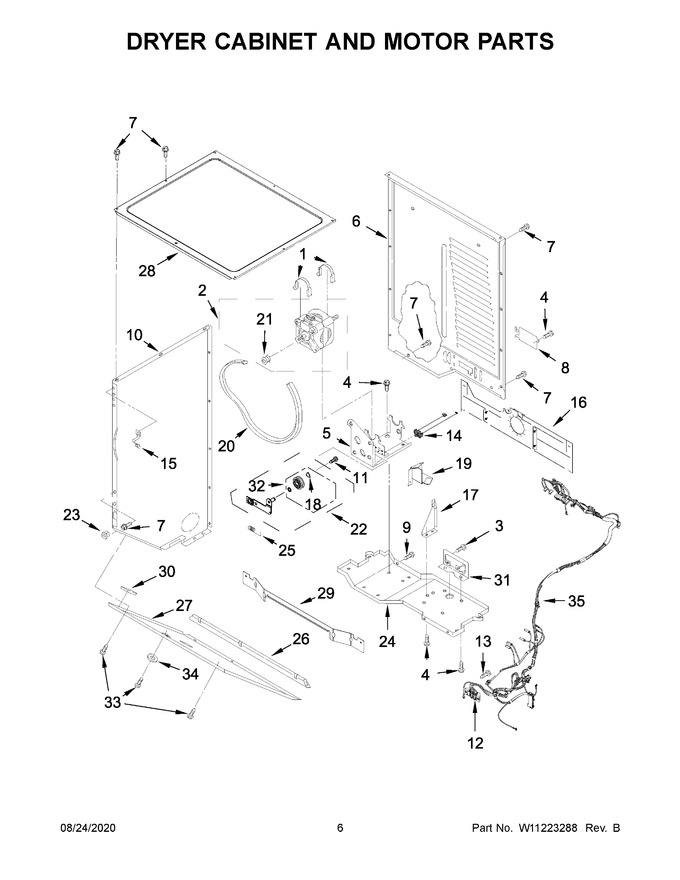

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 2 | W11094983 | Motor, Main Drive (60 Hz) (Replaces: W10815362) |
|
- | |||||
| 3 | WP273556 | Screw (Replaces: 3387485) |
|
Immediately | $ 8.43 | ||||
| 4 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 5 | W11107901 | Bracket, Motor |
|
- | |||||
| 6 | W10892491 | Panel, Rear (Replaces: W10892493) |
|
$ 327.80 | |||||
| 7 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 8 | W11609859 | Bracket, Terminal Block (Replaces: 697740) |
|
- | |||||
| 9 | W10850756 | Screw (Replaces: W10773242) |
|
$ 8.20 | |||||
| 10 | W11043388 | Panel, Side (white (left Hand)) |
|
$ 304.22 | |||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 106.04 | ||||
| 13 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 55.66 | ||||
| 14 | W11092677 | Switch, Broken Belt (Replaces: W10872742) |
|
- | |||||
| 15 | 3389231 | Clip, Front Panel |
|
$ 13.28 | |||||
| 16 | W10760375 | Panel, Back Assembly |
|
$ 314.77 | |||||
| 17 | W11100260 | Bracket, Bulkhead |
|
$ 20.48 | |||||
| 18 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 9.68 | ||||
| 19 | W10760374 | Bracket, Roller Assembly |
|
$ 53.75 | |||||
| 20 | 341241 | Belt, Drive (Replaces: W10131364) |
|
Immediately | $ 18.15 | ||||
| 21 | W10918858 | Pulley, Motor (60 Hz.) |
|
- | |||||
| 22 | W11179188 | Idler And Pulley Assembly (Replaces: W11116981) |
|
- | |||||
| 23 | WP692400 | Screw Grommet (Replaces: 692400) |
|
Immediately | $ 8.02 | ||||
| 24 | W11107897 | Base, Dryer |
|
- | |||||
| 25 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 25.80 | ||||
| 26 | W11176116 | Cover, Transition Panel (white) (Replaces: W11028800) |
|
$ 199.48 | |||||
| 27 | 3389272 | Panel, Transition |
|
$ 265.85 | |||||
| 28 | W11096834 | Top, Dryer (assembly) |
|
$ 292.31 | |||||
| 29 | W11028409 | Bracket |
|
$ 20.76 | |||||
| 30 | 3389682 | Spacer, Toe Panel |
|
$ 9.23 | |||||
| 31 | 3393721 | Bracket, Terminal Block (Replaces: 3393722) |
|
$ 22.44 | |||||
| 32 | 279640 | Assembly, Pulley (Replaces: W10468057) |
|
Immediately | $ 32.51 | ||||
| 33 | WP693304 | Screw (Replaces: 693304) |
|
$ 8.44 | |||||
| 34 | W11028744 | Magnet, Lid Catch |
|
Immediately | $ 292.58 | ||||
| 35 | W11330661 | Harness, Dryer (Replaces: W11084470) |
|
- | |||||
| 10A | W11043381 | Panel, Side (white (right Hand)) |
|
$ 279.84 |
