01 - Cover Sheet

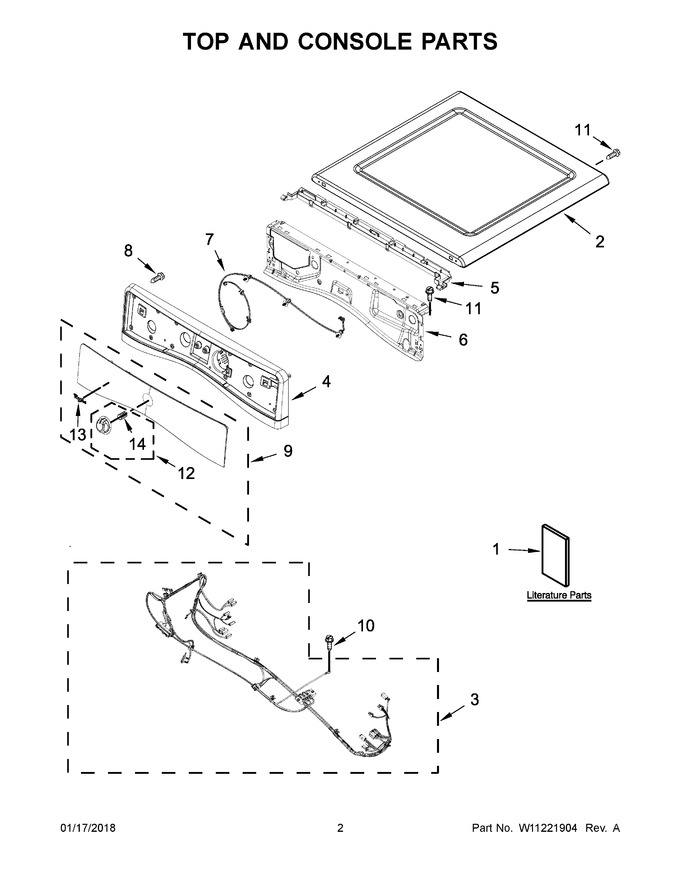

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10804688 | Use And Care Guide |
|
- | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 308.50 | |||||
| 3 | W10801123 | Harness, Main Wiring |
|
$ 104.68 | |||||
| 4 | WPW10391519 | Panel, Console Assembly (white) (Replaces: W10391519) |
|
Immediately | $ 176.95 | ||||
| 5 | WPW10653575 | Water Channel (Replaces: W10636058) |
|
$ 86.61 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 75.41 | |||||
| 7 | W11025125 | Cable, User Interface (Replaces: W10540654) |
|
Immediately | $ 12.64 | ||||
| 8 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.75 | ||||
| 9 | W11109849 | Assembly, Overlay (white) (Replaces: W10891930) |
|
$ 570.86 | |||||
| 10 | WP693995 | Screw |
|
Immediately | $ 7.19 | ||||
| 11 | WP488729 | Screw |
|
Immediately | $ 7.79 | ||||
| 12 | W10875909 | Assembly, Timer Knob (chrome) (Replaces: W10783726) |
|
Immediately | $ 52.99 | ||||
| 13 | W11178521 | Badge (white) (Replaces: W10387117) |
|
Immediately | $ 63.13 | ||||
| 14 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 13A | WPW10393264 | Badge (grey) (Replaces: W10393264) |
|
$ 64.51 | |||||
| 1A | W10806847 | Tech Sheet |
|
- | |||||
| 1B | W10868945 | Installation Instructions |
|
- | |||||
| 1C | W10804668 | Quick Start Guide |
|
- | |||||
| 2A | WPW10460919 | Top (chrome Shadow) (Replaces: W10460919) |
|
$ 289.19 | |||||
| 4A | W10876224 | Panel, Console Assembly (chrome Shadow) (Replaces: W10463690) |
|
$ 386.81 | |||||
| 9A | W11109852 | Assembly, Overlay (chrome Shadow) (Replaces: W10891932) |
|
$ 574.93 |
