01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:

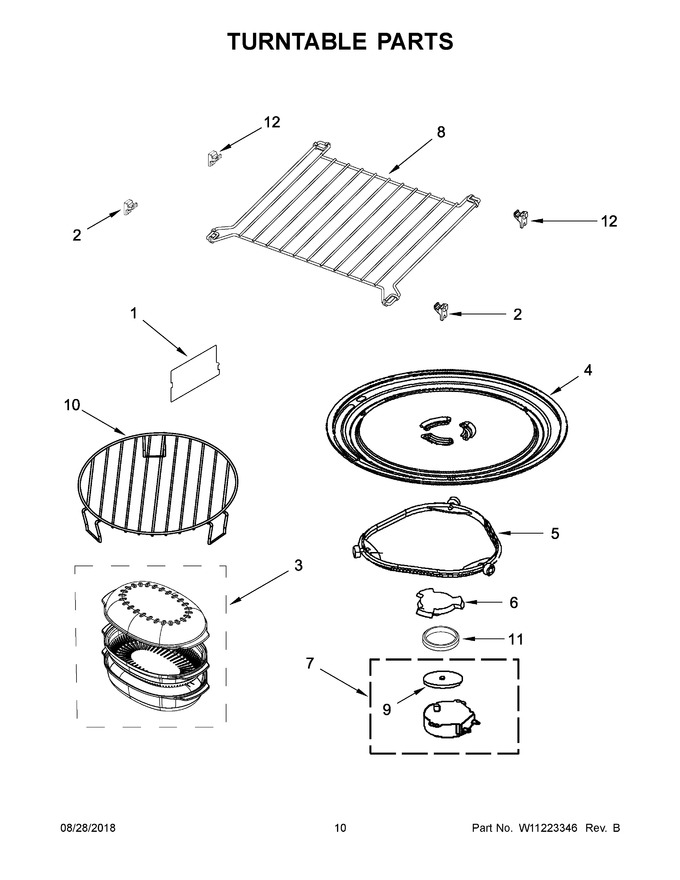

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11197783 | Cover, Waveguide (Replaces: W10533498) |
|
$ 77.78 | |||||
| 2 | W10740485 | Hook, Microwave (left Front & Right Front) |
|
$ 22.37 | |||||
| 3 | 8205262RB | Steamer (Replaces: W10857800) |
|
$ 59.88 | |||||
| 4 | W11402532 | Turntable (Replaces: W10531726) |
|
Immediately | $ 65.40 | ||||
| 5 | W10679313 | Ring, Turntable |
|
$ 97.44 | |||||
| 6 | W10337248 | Driver, Turntable |
|
Immediately | $ 7.83 | ||||
| 7 | WPW10466420 | Motor, Turntable (Replaces: W10466420) |
|
Immediately | $ 45.71 | ||||
| 8 | W10249618 | Rack, Microwave |
|
$ 27.74 | |||||
| 9 | 8184109 | Seal, Waterproof |
|
$ 7.30 | |||||
| 10 | W10440082 | Rack, Convection |
|
$ 16.52 | |||||
| 11 | W10568148 | Seal, Turntable Block |
|
Immediately | $ 32.07 | ||||
| 12 | W10573936 | Hook, Microwave (left Rear & Right Rear) |
|
$ 29.70 |
