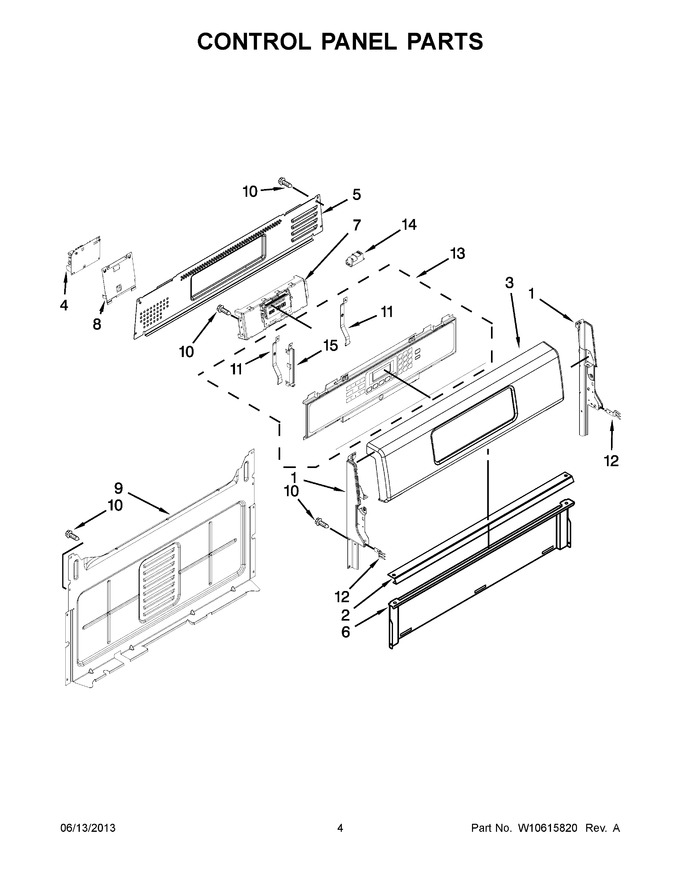

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap, Left Hand (white (left Hand))   (Replaces: W10184433)				$ 38.21
2	W10516123		Bracket, Console Mounting (gas)		Appelez-nous	-
3	W10347958		Console (white)				$ 120.54
4	WPW10511278		Module-spark (4+2) Dsi   (Replaces: W10511278)			Immediately	$ 317.01
5	W10198745		Cover, Upper				$ 116.01
6	W10192841		Shield, Heat				$ 96.02
7	WPW10340700		Control, Mrc   (Replaces: W10340700)				$ 408.81
8	W10516577		Bracket, Mounting		Appelez-nous	-
9	W10184251		Cover, Back		Appelez-nous	-
10	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
11	W10318546		Bracket, Control		Appelez-nous	-
12	8523412		Bracket, Rear Cooktop				$ 151.11
13	W10324433		Assembly, Overlay				$ 316.04
14	WPW10475149		Module, Spark (2+0 Filtered)   (Replaces: W10475149)			Immediately	$ 195.52
1A	W11219664		Endcap, Left Hand (black (left Hand))   (Replaces: W10184437)			Immediately	$ 138.45
1B	W11219370		Endcap, Left Hand (white (right Hand))   (Replaces: W10184434)				$ 54.75
1C	W11219665		Endcap, Left Hand (black (right Hand))   (Replaces: W10184438)			Immediately	$ 40.65
3A	W10347959		Console (black)		Appelez-nous	-
3B	W10347960		Console (stainless)		Appelez-nous	-
