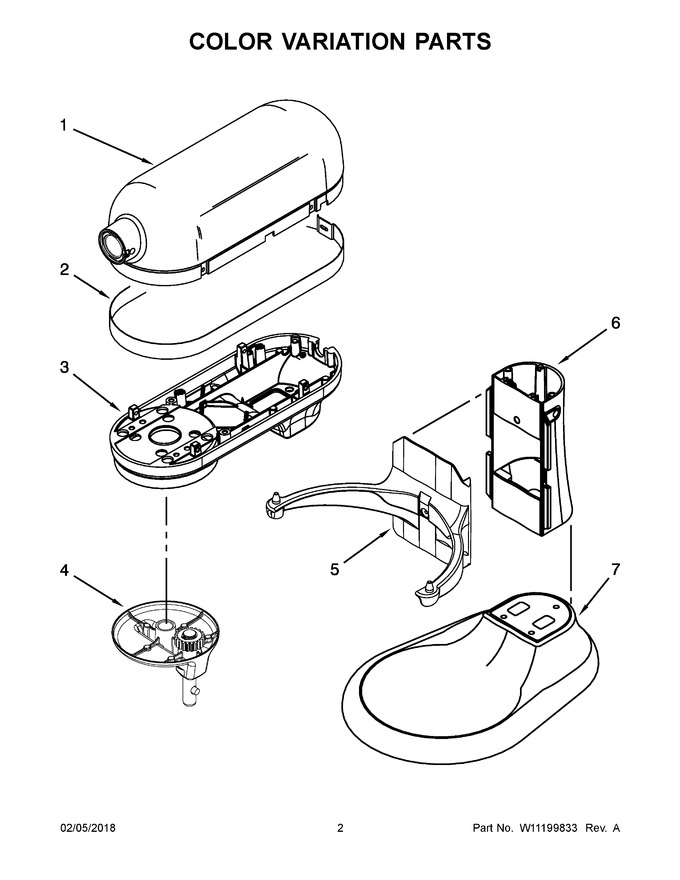

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit
04 - Base And Pedestal Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9703532 | Motor Housing (imperial Black) |
|
$ 88.20 | |||||
| 2 | W10234515 | Trim Band (dark Platinum) |
|
$ 34.93 | |||||
| 3 | W10737001 | Lower Gearcase (imperial Black) (Replaces: W10737003) |
|
- | |||||
| 4 | W10737004 | Planetary (imperial Black) |
|
- | |||||
| 5 | 9703520 | Bowl Support And Pins (imperial Black) |
|
- | |||||
| 6 | 9703526 | Column And Pins (imperial Black) |
|
- | |||||
| 7 | 9703511 | Base And Foot Assembly (imperial Black) |
|
- |
