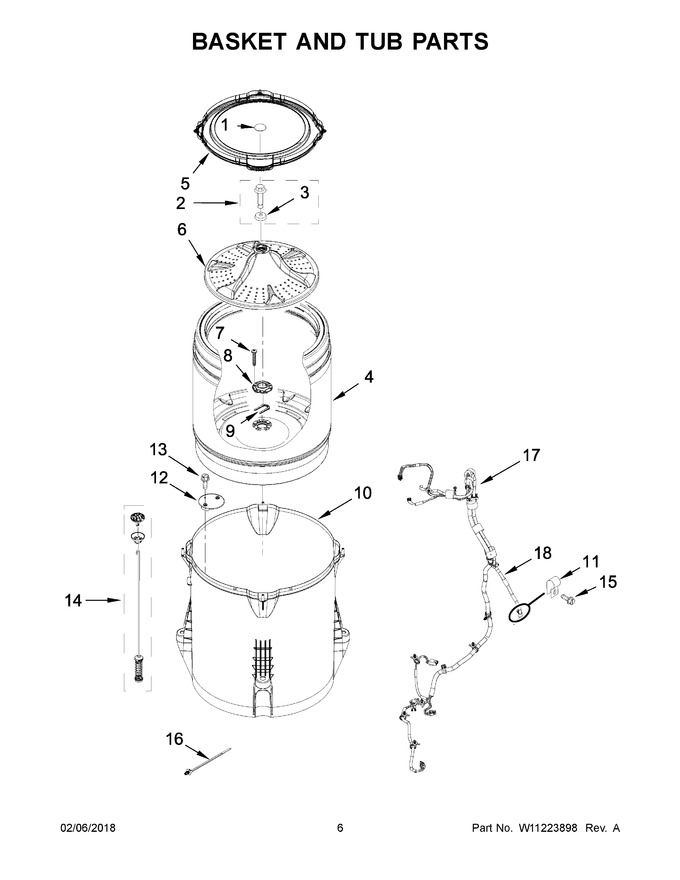

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10305259 | Cap, Impeller (Replaces: W10305259) |
|
$ 23.63 | |||||
| 2 | W10772621 | Screw And Washer |
|
Immediately | $ 7.59 | ||||
| 3 | WP3949550 | Washer |
|
Immediately | $ 11.63 | ||||
| 4 | W10910409 | Basket Assembly |
|
$ 278.28 | |||||
| 5 | W11550886 | Tub Ring (Replaces: W11043544) |
|
Immediately | $ 115.22 | ||||
| 6 | WPW10215115 | Impeller (washplate) (Replaces: W10215115) |
|
$ 313.32 | |||||
| 7 | WP8533953 | Screw |
|
Immediately | $ 7.55 | ||||
| 8 | W10528947 | Hub - Driven, Basket |
|
Immediately | $ 44.62 | ||||
| 9 | W11385424 | Retainer, Drive Block (Replaces: WPW10402178) |
|
Immediately | $ 12.97 | ||||
| 10 | W10371566 | Tub (Replaces: W10238320) |
|
$ 356.34 | |||||
| 11 | W10005430 | Clamp, Cable |
|
Immediately | $ 9.53 | ||||
| 12 | WPW10215093 | Filter, Drain Pump |
|
$ 65.26 | |||||
| 13 | WP8533928 | Screw |
|
Immediately | $ 8.26 | ||||
| 14 | W11217817 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls) (Replaces: W11159470) |
|
Immediately | $ 227.01 | ||||
| 15 | WPW10109200 | Screw |
|
Immediately | $ 8.80 | ||||
| 16 | W10339680 | Cable Tie |
|
- | |||||
| 17 | W11388377 | Harness, Lower (Replaces: W11156556) |
|
$ 141.20 | |||||
| 18 | W10846364 | Hose, Pressure Switch (Replaces: W10520039) |
|
Immediately | $ 25.81 |
