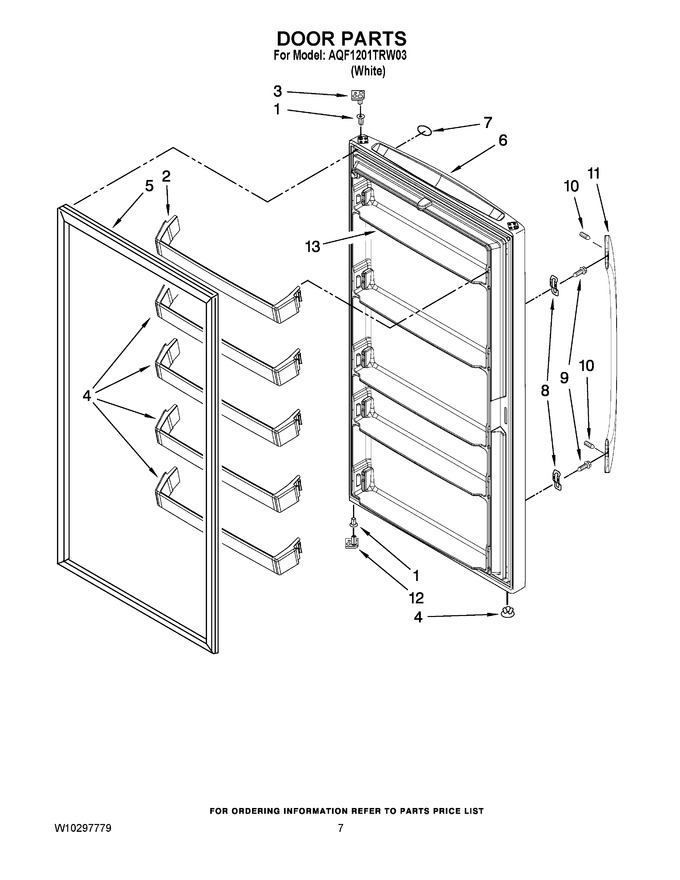

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4390731 | Bushing, Hinge |
|
$ 19.69 | |||||
| 2 | 4390606 | Rail, Door (5) |
|
- | |||||
| 3 | 8210401 | Stop, Door (upper) |
|
- | |||||
| 4 | 3-24898-007 | Vent Plug (Replaces: 4357067) |
|
$ 10.21 | |||||
| 5 | 4357136 | Gasket, Door |
|
$ 173.12 | |||||
| 6 | 8210365 | Door Assembly |
|
- | |||||
| 7 | 68001748 | Nameplate |
|
- | |||||
| 8 | WP2255411 | Clip (Replaces: 2255411) |
|
$ 32.90 | |||||
| 9 | WP489491 | Screw (Replaces: 489491) |
|
$ 6.57 | |||||
| 10 | 8533920 | Screw |
|
$ 5.27 | |||||
| 11 | 4390667 | Handle |
|
- | |||||
| 12 | 8210400 | Stop, Door (lower) |
|
- | |||||
| 13 | 8210393 | Liner |
|
- |
