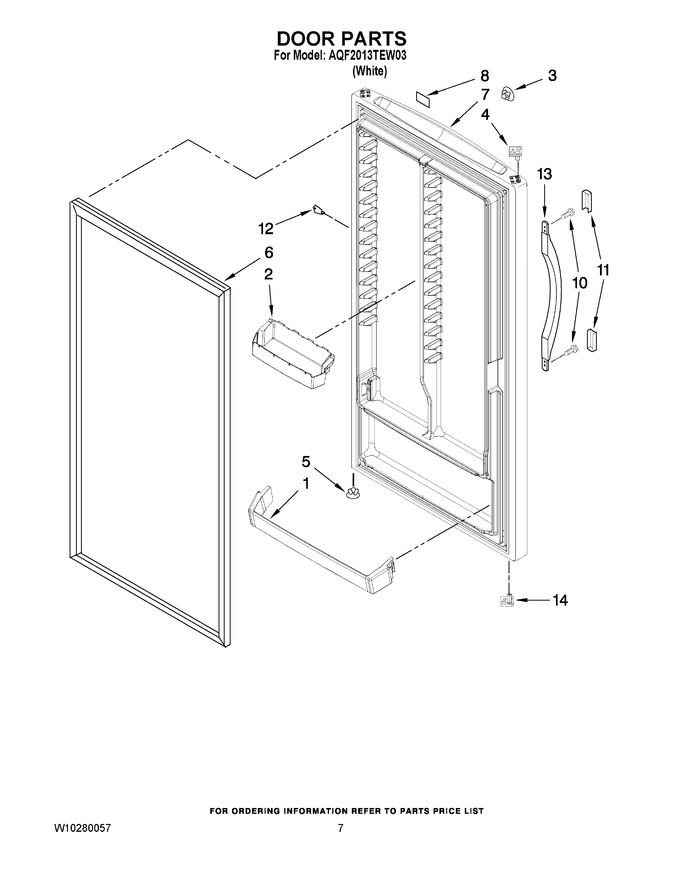

04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8210428 | Rail, Door (1) |
|
- | |||||
| 2 | W10179592 | Bin, Door (7) |
|
- | |||||
| 3 | WP2189000 | Plug, Door (wh) (Replaces: 4390596) |
|
Immediately | $ 7.77 | ||||
| 4 | 8210401 | Stop, Door (upper) |
|
- | |||||
| 5 | 3-24898-007 | Vent Plug (Replaces: 4357067) |
|
$ 11.34 | |||||
| 6 | WP4-65151-004 | Gasket, Door (Replaces: 8210341) |
|
$ 382.94 | |||||
| 7 | 8210361 | Door Assembly (includes Interior Door Liner) |
|
$ 771.69 | |||||
| 8 | 68001748 | Nameplate |
|
- | |||||
| 10 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 11 | 4390668 | Trim, Handle |
|
- | |||||
| 12 | WP4356840 | Key (Replaces: 4356840) |
|
$ 11.28 | |||||
| 13 | 4-81902-001 | Handle |
|
- | |||||
| 14 | 8210400 | Stop, Door (lower) |
|
- |
