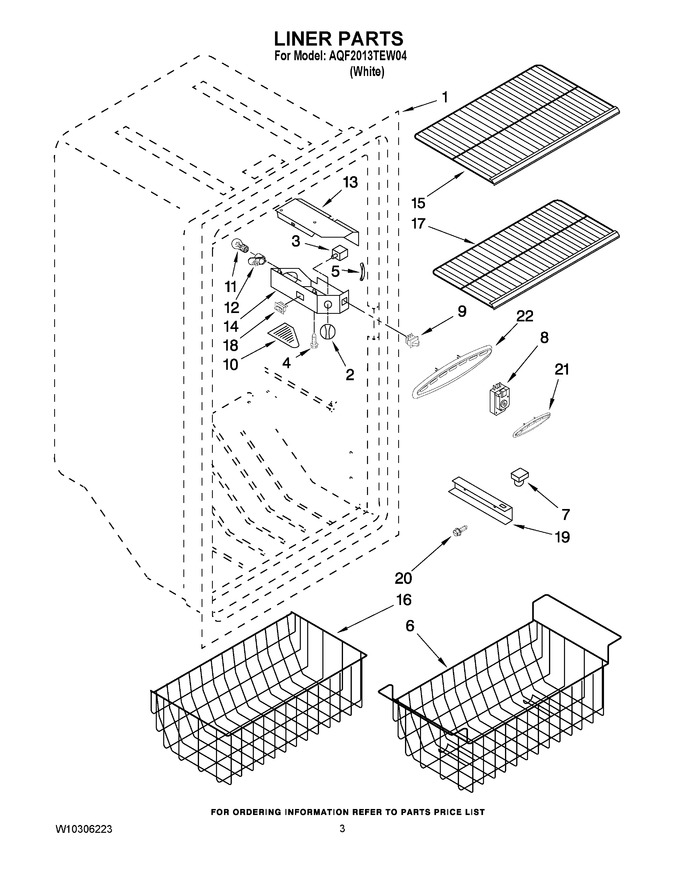

02 - Liner Parts


03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	3-82390-001		Knob, Control   (Replaces: 8210348)				$ 30.10
3	WP4-83053-002		Thermostat   (Replaces: 8210344)				$ 256.73
4	W10709795		Screw   (Replaces: 4390511)				$ 13.79
5	WP2196003		Tubing, Thermostat   (Replaces: 8210246)				$ 8.35
6	4390632		Basket, Wire		Appelez-nous	-
7	4390823		Stop, Basket		Appelez-nous	-
8	WP3-81329		Defrost Timer   (Replaces: 4357124)			Immediately	$ 199.14
9	W11384469		Switch, Light   (Replaces: 4390513)			Immediately	$ 39.09
10	8210349		Lens Light				$ 33.01
11	W11679940		Bulb, Light   (Replaces: 4390465)			Immediately	$ 11.30
12	WP3-82393-001		Socket, Light   (Replaces: 8210350)				$ 112.73
13	8210351		Shield, Light				$ 42.03
14	8210406		Box, Control		Appelez-nous	-
15	WP4-82634-002		Shelf, Upper Wire   (Replaces: W10279358)				$ 157.37
16	4390933		Basket, Wire		Appelez-nous	-
17	4-82977-002		Shelf, Lower Wire   (Replaces: W10279459)				$ 265.34
18	8210370		Switch, Alarm (illuminated)		Appelez-nous	-
19	4390820		Support, Basket				$ 77.44
19	4390819		Support, Basket		Appelez-nous	-
20	WP3-24004-109		Screw   (Replaces: 4390510)				$ 9.14
21	4-82573-002		Diffuser, Air Sht   (Replaces: W10258754)		Appelez-nous	-
22	W10258753		Diffuser, Air Upr		Appelez-nous	-
