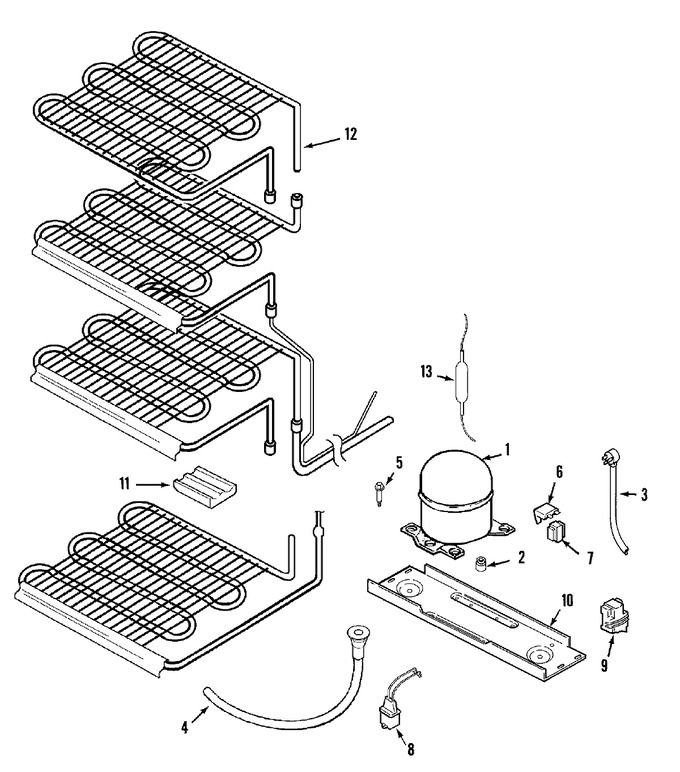

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Door
02 - Freezer Compartment
03 - Supplemental Information
04 - Unit Compartment & System
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10309989 | Kit, Compressor (r134a) (Replaces: 68001458) | 10 |
|
Immediately | $ 689.81 | |||
| 2 | Y09100025 | Grommet, Compressor | 10 |
|
- | ||||
| 3 | 4-82399-001 | Cord, Power | 10 |
|
$ 52.24 | ||||
| 4 | 68001472 | Drain Kit | 10 |
|
- | ||||
| 4 | 68001103 | Plug, Drain | 10 |
|
- | ||||
| 5 | 8210220 | Screw, Compressor (Replaces: 68001627) | 10 |
|
- | ||||
| 6 | 68001368 | Relay, Start | 10 |
|
- | ||||
| 7 | WP2214067 | Overload (Replaces: 68001459) | 10 |
|
$ 138.24 | ||||
| 8 | 68001742 | Capacitor, Run (w/wires) | 10 |
|
- | ||||
| 9 | 2217635 | Cover, Terminal (Replaces: 68001478) | 10 |
|
- | ||||
| 10 | 90027-015 | Pan Kit, Compressor Mtg. | 10 |
|
- | ||||
| 10 | WP3-24838-048 | Screw (Replaces: 68001353) | 10 |
|
$ 8.33 | ||||
| 11 | Y04913701 | Clamp | 10 |
|
- | ||||
| 12 | 90029-081 | Evap. & Heat Exchanger Kit | 10 |
|
- | ||||
| 12 | WPW10348409 | Screw (1 1/4``) (Replaces: 68001196) | 10 |
|
Immediately | $ 8.20 | |||
| 12 | 005417-33 | Washer | 10 |
|
- | ||||
| 13 | WPW10143759 | Drier (Replaces: 13900-1) | 10 |
|
Immediately | $ 30.78 | |||
| NI | 68001738 | Wire Harness, Main | 10 |
|
- |
