SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts

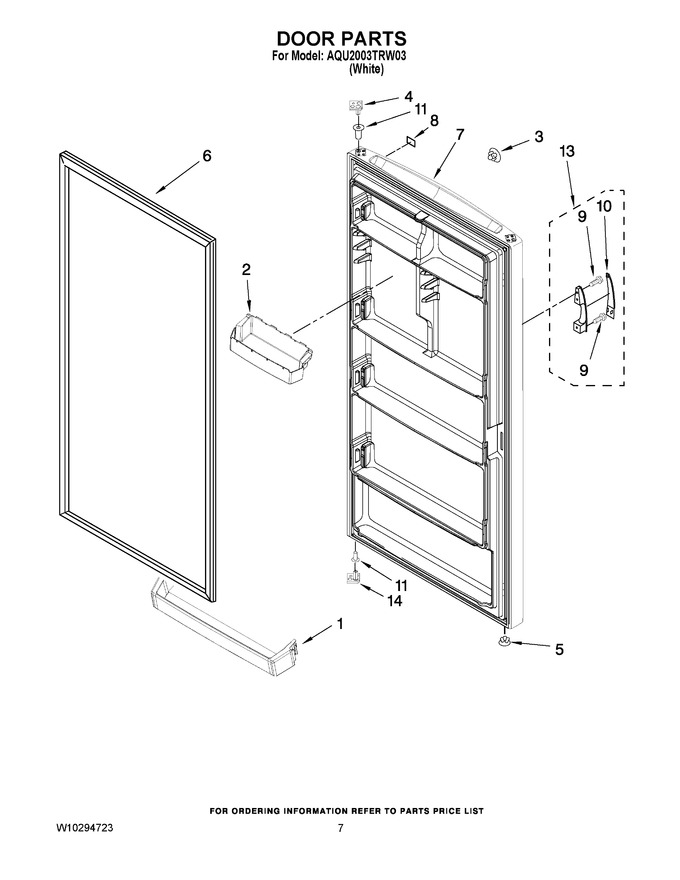

04 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8210428		Rail, Door (1)		Appelez-nous	-
2	W10179592		Bin, Door (7)		Appelez-nous	-
3	WP2189000		Plug, Door (wh)   (Replaces: 4390596)			Immediately	$ 7.77
4	8210401		Stop, Door (upper)		Appelez-nous	-
5	3-24898-007		Vent Plug   (Replaces: 4357067)				$ 11.34
6	WP4-65151-004		Gasket, Door   (Replaces: 8210341)				$ 382.94
7	8210361		Door Assembly (includes Interior Door Liner)				$ 771.69
8	68001748		Nameplate		Appelez-nous	-
9	WP489491		Screw   (Replaces: 4390669)				$ 7.30
10	4390668		Insert, Handle		Appelez-nous	-
11	4390731		Bushing				$ 19.69
13	4390667		Handle Assembly (includes Item 11)		Appelez-nous	-
14	8210400		Stop, Door (lower)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
