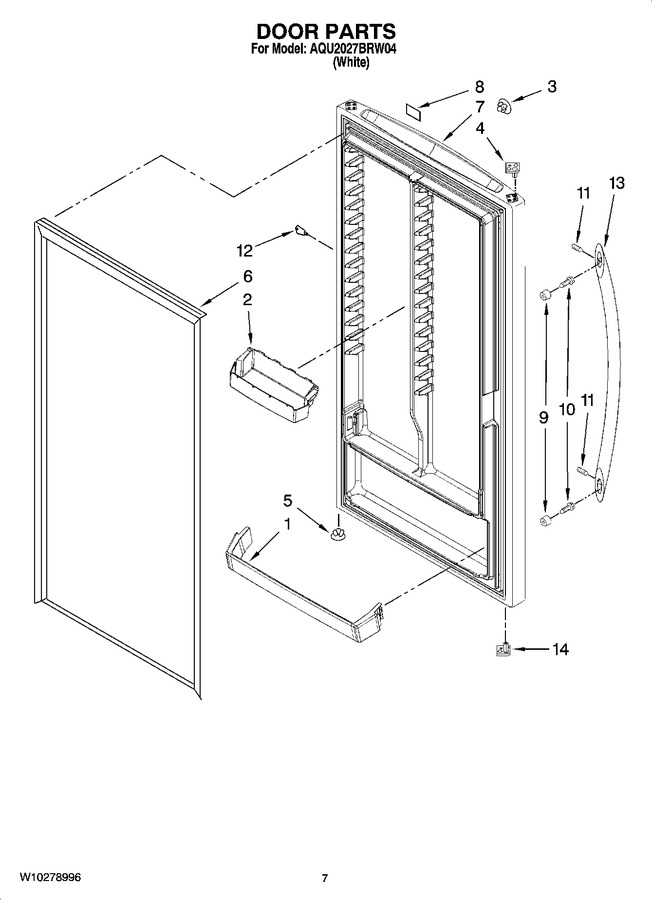

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8210428		Rail, Door (1)		Appelez-nous	-
2	W10179592		Bin, Door (7)		Appelez-nous	-
3	WP2189000		Plug, Door (wh)   (Replaces: 4390596)			Immediately	$ 7.40
4	8210401		Stop, Door (upper)		Appelez-nous	-
5	3-24898-007		Vent Plug   (Replaces: 4357067)				$ 10.80
6	WP4-65151-004		Gasket, Door   (Replaces: 8210341)				$ 364.70
7	68001746		Door Assembly (includes Interior Door Liner)		Appelez-nous	-
8	68001748		Nameplate		Appelez-nous	-
9	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
10	WP488163		Screw   (Replaces: 488208)				$ 7.54
11	8533976		Screw				$ 8.35
12	WP4356840		Key   (Replaces: 4356840)				$ 10.74
13	R0131138		Handle Assembly (includes Item 11)		Appelez-nous	-
14	8210400		Stop, Door (lower)		Appelez-nous	-
