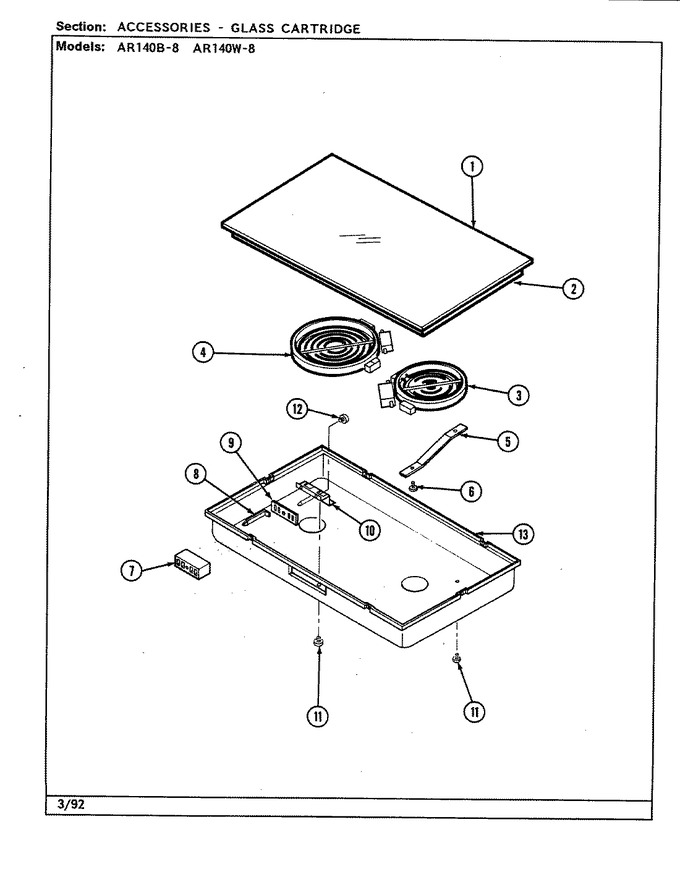

01 - Accessories (glass Cartridge)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 04100257 | Glass/frame Assy (radiant) | 1 |
|
- | ||||
| 2 | 12200008 | Top Assy | 1 |
|
- | ||||
| 3 | Y04100328 | Element, Radiant (6``-208v) | 1 |
|
- | ||||
| 4 | Y04100329 | Element, Radiant (8``-208v) | 1 |
|
- | ||||
| 5 | WPY04100059 | Screw (Replaces: Y04100059) | 1 |
|
$ 8.68 | ||||
| 5 | Y04100058 | Spring, Support | 1 |
|
- | ||||
| 6 | WP210720 | Rivet (Replaces: 701662) | 1 |
|
$ 14.16 | ||||
| 7 | WPY708730 | Block, Terminal (Replaces: Y708730) | 1 |
|
$ 102.01 | ||||
| 8 | Y708572 | Spade, Contact | 1 |
|
Immediately | $ 13.23 | |||
| 9 | 708834 | Insulator, Contact Spade | 1 |
|
$ 15.74 | ||||
| 10 | Y04100060 | Bracket, Retaining | 1 |
|
- | ||||
| 11 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 8.76 | |||
| 12 | WP488234 | Screw (Replaces: 708861) | 1 |
|
$ 7.08 | ||||
| 13 | Y04100064 | Pan, Cartridge | 1 |
|
- |
